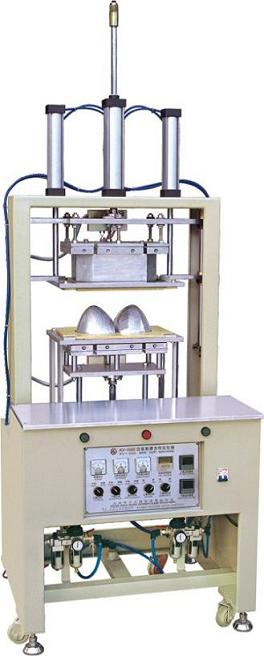

Kv-168b / B-0 Elastic Fabric Cup Molding Machine

Posted at: Offers to Sell and Export | Posted on: Sun 10 Oct, 2010 6:35 am | Product Category: Molding machines [124]

kv 168b b 0 elastic fabric cup molding machine
Products Photos Catalog168b Elastic Fabric Photos Catalog



用途:适用于各种弹力布料的定型。

特点:


(1)

该机型可灵活变换使用功能,一机多用,适合压棉、压布,综合提升设备资源的有效利用。

(2) 突破传统的机型设计,采用四导杆定位,加装自动抽烟装置,卫生环保。(选装)

(3) 夹布装置平稳,避免打皱,适合各种弹力布料的成型。

(4) 具有自动调节适应能力,红外线探灯定位,控制布料成型深浅度。(选装)

(5) 左右独立恒温控制以及上下模台双向驱动原理,有效利用整机空间,克服发热不均匀,耗电等缺陷。

(6) 本公司针对内衣模杯生产开发的特有温度控制系统,运用可控硅移相触发电流控制加热,可使发热更均匀、平稳、省电,节能效果佳,并可延长发热管使用寿命。

技术参数:

电源/功率:220v/4kw

电热片规格:Φ12◊220mm◊500W-220V

模台尺寸:335mm ◊220mm

机台尺寸:800mm◊670mm◊2000mm

压框尺寸:450mm◊300mm

适用物料:文胸、服装等面料的热压定型

适用模具:文胸棉杯模具或子弹头布杯模具均可

重量:250kg

Function:It is suitable for the molding production of different elastic fabric cups.

Features:

(1) The machine is flexible to change the functions and used in many ways. It is suitable for compressing foam and fabric cups, which makes effective use of the machine itself.

(2) Breaking through the traditional design, it has been adopted guiding poles to fix, equipped with transparent shield and automatic smoke-exhausting device, which is better for operating environment.

(3) The cloth clapping device is steady which can protect the fabric cups from being wrinkled. It is suitable for all kinds of the elastic fabric.

(4) It has automatic adjusting and adapting function, infrared searching lights to location.

(5) Left and right thermostat and upper-and-lower moulds bi-directional driver, which can make good use of the whole space, overcoming the faults such as unevenly heating and electricity-waste.

(6) To direct at the specific temperature control system in the development of bra cups production, we utilize silicon controlled phase shifting triggering current to control heating. So, it can make the temperature more even and steady with remarkable energy-saving efficiency and it will prolong the heating tubeís service life.

Technical parameter:

(1) Power supply/Power: 220V/4KW

(2) Specification of the heating pipe: Φ 12◊220mm◊500W-220V

(3) Dimension of the heating pipe: 335mm ◊220mm

(4) Dimension of the machine: 800mm◊670mm◊2000mm

(5) Dimension of the press frame: 450mm◊300mm

(6) Applicable materials: the heat-press molding of the bras and other garments

(7) Applicable moulds: moulds for foam cups and bullet head moulds for fabric cups

(8) Weight: 250KG



Company Contact:

sthongji photo
Contact Name: Mr. Jack Lau
Company Name: Shantou Hongji Machine Equipment Co., Ltd
Email: Email
Tel: 86-754-82489576
Fax: 86-754-82489168
Street Address: No. 189 Chaoshan Road,
Jinping District, Shantou, Guangdong, China
Website: http://www.sthongji.com
Member name: sthongji
Country: China-CN China
Member Since: 10 October 2010
Total Leads: 13 sthongji Import Export Business Leads
Business focus: Foam Bra Cup, Fabric Bra Cup Molding Machine, Fabric-foam Laminating Machine, Bra Cup, Moulds, Apparel Machinery
