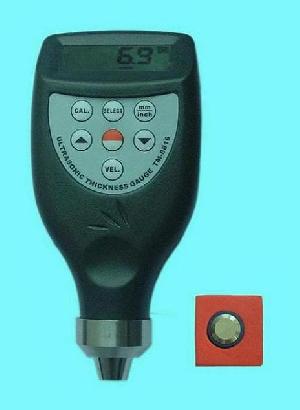

Landtek Ultrasonic Thickness Gauge Tm-8816 / 8816c

Posted at: Offers to Sell and Export | Posted on: Fri 08 Oct, 2010 7:37 am |

landtek ultrasonic gauge tm 8816 8816c
Products Photos CatalogLandtek Ultrasonic Photos Catalog



Application: Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers,



oil storage tanks, etc.in industries of petroleum, shipbuilding, power station, and machine manufacturing.

Model: TM8816 TM8816C

Probe: with probe in built.

Measuring range (metric/imperial): 1.0-200mm, 0.05-8inch

Operating principle: ULTROSONIC

Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials

Sound velocity: 500-9000m/s

Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducer

Calibration block: included

Resolution: 0.1mm (TM8816C 0.01mm)

Accuracy: (0.5%n+0.1)

RS232C interface: with RS232C

Power supply: 4x1.5V AAA (UM-4)battery

Battery indicator: low battery indicator

Operating conditions:0-+45℃(32℉-104℉), ≤90%RH

Dimensions: 120x62x30mm

weight: 164g(not including battery)
