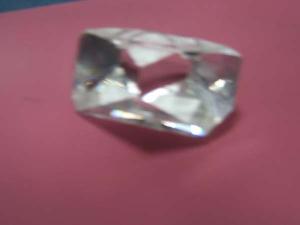

LBO crystals for high power DPSS Laser. Lithium triborate (LiB 3 O 5 or LBO) has the following exceptional
properties that make it a very important nonlinear crystal:
Lasertec’s LBO has following advance:
absorption: <100ppm/cm @1064nm <50ppm/cm for high power laser aoolication
High damage coating for high power cw laser.
Large quantity standard products in stock
Lasertec’s crystals advanced
1. broad transparency range from 160nm to 2600nm;
2. high optical homogeneity ( d n » 10 -6 /cm) and being free of inclusion;
3. relatively large effective SHG coefficient (about three times that of KDP);
4. high damage threshold (18.9 GW/cm 2 for a 1.3ns laser at 1053nm);
5. wide acceptance angle and small walk-off;
6. type I and type II non-critical phase matching (NCPM) in a wide wavelength range;
7. spectral NCPM near 1300nm.
1. SHG and THG for middle and high power Nd: lasers at 1064nm for medical, industrial and military applications;
2. SHG for Ti:Sapphire, Alexandrite and Cr:LiSAF lasers;
3. SHG and THG of high power Nd: lasers at 1342nm & 1319nm for red and blue laser
4. SHG for the Nd: Lasers at 914nm & 946nm for blue laser.
5. The VUV output at 187.7 nm is obtained by sum-frequency generation.
6. NCPM SHG over a broad wavelength range from 900nm-1700nm was measured.
7. Phase matching process cutoff: SHG-554 nm fundamental, THG-794 nm, SFM-down to 160 nm.
8. Optical Parametric Amplifiers (OPA) and Oscillators (OPO) application;
Part No. Dimension Application Coating Type
LBO1320 3x3x 20mm SHG@1064nm DBAR coating I
LBO1316 3x3x 16mm SHG@1064nm DBAR coating I
LBO1312 3x3x 12mm SHG@1064nm DBAR coating I
LBO1418 4x4x 18mm SHG@1064nm DBAR-coating I
LBO0320 3x3x 20mm NCPM for SHG@1064nm Uncoating I
LBO2320 3x3x 20mm THG for 1064nm AR coating II
LBO2316 3x3x 16mm THG for 1064nm AR coating II
LBO2418 4x4x 18mm THG for 1064nm AR coating II
LBO2415 4x4x 15mm THG for 1064nm AR coating II
LBO1340 3x3x 40mm NCPM for SHG@1064nm Uncoating I
