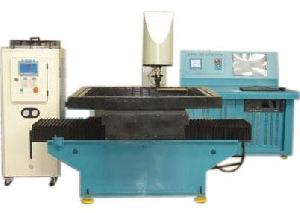

Ld-cut-200w Laser Cutting Machine

Posted at: Offers to Sell and Export | Posted on: Fri 30 Apr, 2010 6:36 am | Product Category: Cutting machines [1301]
ld cut 200w laser cutting machine
Products Photos CatalogCut 200w Laser Cutting Photos Catalog

LD-CUT-200W laser cutting machine adopts the pulsed Nd: YAG solid-state laser, working medium is neodymium-doped

yttrium aluminum garnet crystal, pump source is Xe lamp. The output laser wavelength is 1, 064m, its infrared light without visible. Laser host adopted the metal resonator imported from Germany, used the premium grade YAG laser crystal as the working substance, equipped with the advanced optical system and high-quality beam focusing system, conducted the specially designed laser route, YAG laser to achieve a high power density, low-divergence angle of output, so that it can complete the cut function.

It is specially designed for metal cutting and drilling. Incision smooth, vertical, and is a special cutting equipment, adapted to stainless steel, carbon steel, copper, aluminum, molybdenum metal cutting and drilling, It has double function of drilling and simple marking. NC Programming, machine able arbitrary planar graphics and text. Complete machine operation is stable and reliable, good processing quality, high efficiency, simple operation, easy maintenance.


Widely used in the machine manufacturing industry such as machine tools, transport machinery, metallurgical machinery, electronics, electrical appliances, electrical manufacturing, automobile manufacturing, telecommunications, broadcasting and information industry, the aerospace industry, petroleum, chemical industry, stone, plastic,paper and rubber products industry and so on.

Technological Parameter:

Laser wavelength 1.064μm

Laser material Nd: YAG

Laser power 200W

Pulse Frequency 1-200Hz

Working current 100A-450A

Pulse Width 0-20MS

Beam divergence ≤3mrad

Power instability ≤2.5%

Cutting speed 1000mm/min(1mm thick stainless steel plate)

Cutting Area XYZ =12001200mm100mm

Dimension of worktable 500mm500mm (optional)

Cutting dimension precision 0.2mm

Positional accuracy 0.02mm/300mm

Repeat positioning accuracy 0.02mm

Cutting thickness stainless steel plate≤4.5mm, carbon steel plate≤5.0mm, brass≤1.5mm, aluminum≤2mm

Maximum input power 12KW

Continuous working Time 24h

Minimum kerf width ≤0.1mm

Focus Lens focal lengths 100mm
