Ld-cut-300w / 500w Laser Cutting Machine

Posted at: Offers to Sell and Export | Posted on: Fri 30 Apr, 2010 6:34 am | Product Category: Cutting machines [1301]

ld cut 300w 500w laser cutting machine
Products Photos CatalogCut 300w 500w Laser Photos Catalog

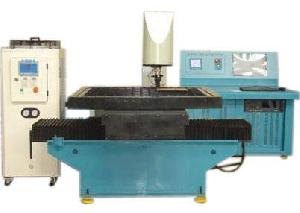

LD-CUT-300W/500W laser cutting machine adopts the pulsed Nd: YAG solid-state laser, working medium is



neodymium-doped yttrium aluminum garnet crystal, pump source is Xe lamp. The output laser wavelength is 1, 064m, its infrared light without visible. Laser host adopted the metal resonator imported from Germany, used the premium grade YAG laser crystal as the work ing substance, equipped with the advanced optical system and high-quality beam focusing system, conducted the specially designed laser route, YAG laser to achieve a high power density, low-divergence angle of output, so that it can complete the cut function.

This machine is the special equipment for metal cutting and drilling, Incision is smooth, the vertical degree is good, adapted to be cutting and drilling for stainless steel, carbon steel, copper, aluminum, molybdenum and other metal materials, also have the punch and simple marking function. Numerical control programming, graphics and text can be processed at arbitrary planar. Stable and reliable machine operation, good processing quality, high efficiency, simple operation and easy maintenance.

Application:

It is widely used in machinery manufacturing, such as machine tools, transportation machinery, metallurgical machinery, electronics, electrical appliances, electrical manufacturing, automobile manufacturing, telecommunications, broadcasting and information industry, aviation, aerospace industry, petroleum, chemical industry, stone, plastic, paper and rubber products industry, etc. .

Technological Parameter:

Laser wavelength: 1.064μm

Laser medium:Nd: YAG crystal

Laser rated power: 300W/500W

Pulse frequency: 1-500HZ

Working current: 100A-450A

Power sourcing:380V/50HZ/100A

Pulse width: 0-20MS

Beam divergence angle: ≤3mrad

Energy Instability: ≤2.5%

Cutting speed: 1000mm/minute (1mm thick stainless steel plate)

Working range: XYZ=12001200mm100mm

Working table size: 1500mmx1500mm (optional)

Cutting precision: 0.2mm

Setting accuracy: 0.02mm/300mm

Resetting accuracy: 0.02mm

Cutting thickness: stainless steel≤4.5mm, carbon steel plate≤5.0mm, copper≤1.5mm, aluminum≤2mm

Max. Input power: 16KW

Continuous working time: 24 hours

Minimum kerf width: ≤0.1mm

Focal length of Focus Lens: 100mm
