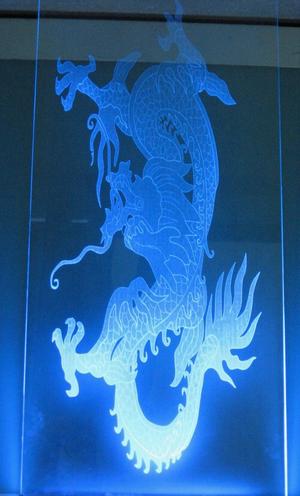

LD-EG-602D Laser Subsurface Engraving Machine is used to engrave 2D images or individual figures in crystal,
glass and other transparent material products. It is suitable for decorating, upholstering and other relative industries.
1. LD-EG-602D Laser Subsurface Engraving Machine adopts 2KHz diode-pumped YAG frequency doubling laser which is faster, the laser point is more thin and bright, the image also will be more elaborate and lively.
2. The key parts of the apparatus mainly come from Germany and the USA. It is more reasonable and steady for long-term production.
3. This machine has the software developed independently, which shall laser 2D image like 3D impression.
4. It has original technology, and the engraving range is 1500X 1000mm.
Laser Wavelength 532nm
Laser Frequency 2 KHz
Maximum Engraving Speed 80000~120000dots/min
Maximum Engraving Range 1500mm×1000mm×3~20mm
Power of the whole machine 2KW
Electricity of the whole machine 15A
Continuous working time 12 hrs
Number of Laser Heads 1
Control System DSP, 3Dimension
Cooling System Semiconductor Cooling, free of other cooling mediums
Weight of the whole machine 300Kgs
Size of the whole machine 1400mm×2100mm×1200mm
Contact Name: George Zhang
Company Name: Wuhan Lead Laser Co., Ltd.
Street Address: No.5-2-4098,
Guandong Technological &
Industrial Park, Wuhan, Hebei, China
Member name: whleadlaser
Member Since: 30 April 2010
Total Leads: 22 whleadlaser Import Export Business Leads
Business focus: Laser Engraving Machine, Laser Marking Machine, Fiber Machine, Co2 Laser Marking Machine
Verify: Safe Import Export Tips
Product Category: Engraving machines
