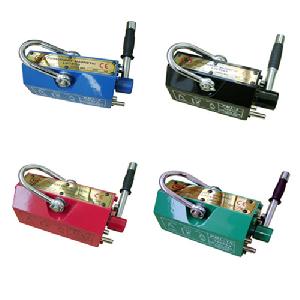

Lift Magnets

Posted at: Offers to Sell and Export | Posted on: Fri 28 Nov, 2008 5:04 am |

lift magnets
Products Photos CatalogLift Magnets Photos Catalog



Range of capacities from 100 to 6,000kg with a 3-3.5:1 safety factor

Available in 7 models



XQFQZQ100:

Rated lifting strength: 100kgf

Cylindrical lifting strength: 30kgf

Maximum pull-off strength: 300-350kgf

Operation temperature: <80C

Size: (W) 61 x (L) 92 x (H) 70 x (I) 145mm

Dead weight: 3kg

Carton size: 18 x 15 x 15cm

XQFQZQ300:

Rated lifting strength: 300kgf

Cylindrical lifting strength: 100kgf

Maximum pull-off strength: 900-1,050kgf

Size: (W) 92 x (L) 162 x (H) 96 x (I) 180mm

Dead weight: 10kg

Carton size: 26 x 23 x 18cm

XQFQZQ600:

Rated lifting strength: 600kgf

Cylindrical lifting strength: 200kgf

Maximum pull-off strength: 1800-2,100kgf

Size: (W) 120 x (L) 216 x (H) 118 x (I) 220mm

Dead weight: 20kg

Carton size: 31 x 31 x 20cm

XQFQZQ1000:

Rated lifting strength: 1,000kgf

Cylindrical lifting strength: 300kgf

Maximum pull-off strength: 3,000-3,500kgf

Size: (W) 148 x (L) 264 x (H) 138 x (I) 265mm

Dead weight: 37kg

Carton size: 43 x 37 x 30cm

XQFQZQ2000:

Rated lifting strength: 2,000kgf

Cylindrical lifting strength: 600kgf

Maximum pull-off strength: 6,000-7,000kgf

Size: (W) 172 x (L) 397 x (H) 168 x (I) 380mm

Dead weight: 80kg

Carton size: 51 x 31 x 38cm

XQFQZQ3000:

Rated lifting strength: 3,000kgf

Cylindrical lifting strength: 1,000kgf

Maximum pull-off strength: 9,000-10,500kgf

Size: (W) 230 x (L) 443 x (H) 215 x (I) 450mm

Dead weight: 160kg

Carton size: 62 x 37 x 46cm

XQFQZQ6000:

Rated lifting strength: 6,000kgf

Cylindrical lifting strength: 2,000kgf

Maximum pull-off strength: 18,000-21,000kgf

Size: (W) 296 x (L) 720 x (H) 266 x (I) 730mm

Dead weight: 398kg

Carton size: 87 x 38 x 51cm



Company Contact:

No member photo
Contact Name: Bati Li
Company Name: Yuyao Xiqingfang Factory
Email: Email
Tel: +86-574-87504686
Fax: +86-574-87504090
Street Address: NO.B401, Shiji Weiye
building, No. 6 Nianjiu Alley, West
Zhongshan Road, Ningbo City, Zhejiang
Province, China
Website: http://www.thqq.com
Member name: Yuyaoxiqingfang
Country: China-CN China
Member Since: 28 November 2008
Total Leads: 6 Yuyaoxiqingfang Import Export Business Leads
Business focus: Lifting Magnet, Magnetic Lifter, Permanent Lifting Magnet, Permanent Magnetic Lifter
