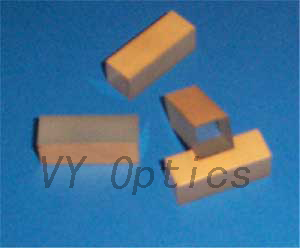

Lithium Niobate(LiNbO3) Crystal lens is widely used as frequency doublers for wavelength > 1 mm and
optical parametric oscillators (OPOs) pumped at 1064 nm as well as quasi-phase-matched (QPM) devices. Due to its large Electro-Optic (E-O) and Acousto-Optic (A-O) coefficients.
We manufacture LiNbO3 crystal lens professionally.
Basic Properties of optical LiNbO3 crystal lens as follow:
Crystal Structure:Trigonal, point group 3m
Lattice Parameters:a=b=5.148, c=13.863
Melting Point:1250 degrees
Curie Point:1142+/- degrees
Dielectric Constant :e11/e0 = 85; e33/e0 = 29.5
Thermal Conductivity:38 W/m egrees at 25 egrees
Thermal Expansion Coefficient:a1=a2 =2x10-6 egrees, a3=2.2x10-6/ degrees at 25degrees
Piezoelectric Strain Constant:d22 = 2.04 x 10-11 C/N, d33 = 19.22 x 10-11 C/N
Elastic Stiffness Constant:CE11 = 2.04 x 1011 N/m2, CE33 = 2.46 x 1011 N/m2
