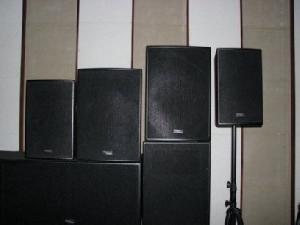

The TK100 is a compact multi-purpose loudspeaker specifically outfitted to serve in a variety of both
portable and permanent applications.
The loudspeaker’s high-frequency section comprises a 1-inch diaphragm compression driver coupled to a symmetrical (90 degrees horizontal by 60 degrees vertical) constant directivity horn. A high-power 10-inch magnet cone drivers, mounted in an optimally vented enclosure, reproduces low frequencies.
Frequency range (-6dB) 70 Hz to 20k Hz
Sensitivity ( f>80Hz) 96dB
SPL (AES) 116dB SPL
Peak SPL 119dB SPL
Nominal directivity ( -6dB) 90° horizontal, 60° vertical
Nominal impedance 8 Ohm
Transducers 10" (250mm) bass driver
1" (25.4mm) compression driver
Rated Power(ASE) 100W
Rated Power(PEAK) 200W
Cabinet 18mm plywood with internal reinforcements
Crossover The crossover point between low and high frequency components
shall be 1.5 kHz with 24 dB per octave Linkwitz-Riley characteristics
Protection grill Acoustically transparent perforated steel, 1.5mm thick
Connectors 4 x Neutrik SPEAKON NL4MP
Handles 1 integrated handles on side
Mounting on stand —
5 standard points
Dimensions (H x W x D) 550 x 337 x 360 mm
Weight Net unit weight 15kg
Gross weight, packed 18kg
1. Sensitivity is the average SPL measured over the component s rated bandwidth
2. Power rating displays the long term AES power handling capacity using pink noise with a 6 dB crest factor over the component.s rated bandwidth
3. Directivity is averaged over the 1000Hz-12 kHz range.
4. The SPEAKON cables are wired, hot pin 1+, cold pin 1-.
