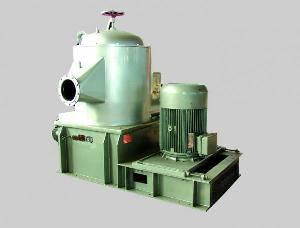

Main Specification And Technical Parameter Of Uv Upflow Pressure Screen

Posted at: Offers to Sell and Export | Posted on: Mon 01 Feb, 2010 1:48 am |

technical parameter uv upflow pressure screen
Products Photos CatalogTechnical Parameter Photos Catalog



Main specification and technical parameter

model


Item

uv0.6 uv0.8 uv1.2 uv2.0 uv3.0 uv4.0

Screen

hole specification mm Φ1.2-Φ3

Screen slot specification mm 0.15-0.75

Capacity D/T 25-120 35-160 45-200 120-350 150-450 200-550

Inflow concentration % 1-3%

Inflow pressure MPa 0.1-0.4

Operation pressure diffirence Mpa 0.01-0.03

Sealing water pressure Mpa 0.1 higher than inflow pressure

Sealing water volume L/min 3-5

Diameter of infolw and outflow pipe mm DN200 DN250 DN250 DN300 DN350 DN350

Diameter of heavy rejects pipe mm DN100 DN100 DN100 DN100 DN125 DN150

Diameterof light rejects pipe mm DN100 DN100 DN100 DN100 DN125 DN150
