Marine Satellite Tv Antenna Dish Diameter 45cm

Posted at: Offers to Sell and Export | Posted on: Tue 22 Aug, 2017 8:43 am | Product Category: Satellite antennas [20]

marine satellite tv antenna dish 45cm
Products Photos CatalogMarine Satellite Photos Catalog

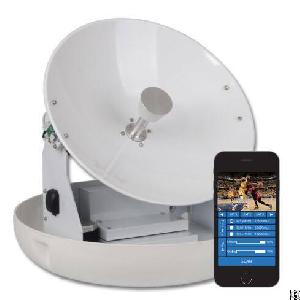

Marine Satellite TV Antenna

Model : EMA-V450/ V450L


General Description

The dependable EMA-V450/V450L

auto tracking marine satellite TV systems

enable high quality satellite TV watching onboard in all conditions.

Features

•Worldwide satellites database; quick lock signal with built-in GPS

•Automatic identifier with a superior satellite tracking performance

•High-performance antenna supported by a high precision gyro with 3-Axis movement.

•Offsets shocks and waves at high speed traveling for any marine vessel

•Easy installation and operation

•Weather proofed

Application Supports

Dish Diameter :

45cm/17.7 inch

Dimension :

600mm(H) x 520mm(D)

Weight :

12kg/26lbs

Minimum EIRP:

48dBW

Reception frequency :

Ku-band(10.7~12.75GHz)

Local Frequency:

10750, 11300, 9750/10600MHz(Option)

Power Requirement :

Ac 100v-240v/1.5a

Operating Voltage :

Dc 24v

Environment Humidity

0~95%

Static Power Consumption:

12w

Elevation Range:

0°~90°

Temperature:

-30℃~70℃

Ship’s Motion:

Roll±25°, Pitch±15°, Yaw±8°@6 sec period

Azimuth Range :

0°~690°

Turning Rate :

More than 90°/sec

RF Output :

Dual/Quad

Water Ingress :

Ip56

ACU Dimensions(WxDxH) :

179 x 140 x 54mm

Polarization :

Linear or Circular
