Metal Saddle Ring

Posted at: Offers to Sell and Export | Posted on: Fri 30 Nov, 2018 2:25 am | Product Category: Structured packing [23]

metal saddle ring
Products Photos CatalogMetal Saddle Ring Photos Catalog

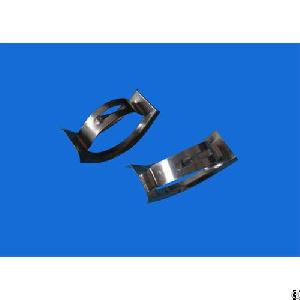

Metal Saddle Ring

Metal Tower Packing


Specification:

The Parameters of Metal Saddle Ring

Model SizeD*H*δ/mm

No. Per Volumen/m3 Specific  Aream2/m3 Void Volume% Drying Packing Factorm-1

Dg25 25X20X0.5 108500 185 0.96 209.1

Dg38 38X24X0.5 31500 140.4 0.968 126.6

Dg50 50X28X0.8 11160 90.1 0.97 84.7

Dg76 76X48X1.0 3320 57.6 0.97 63.1

Advantages:

Saddle Ring,  Its shape is between the ring and the saddle,  and the structure is benefit to distribution of gas-liquid. I t has been applied most extensively

Features: lower pressure drop, big flux, high efficiency.

Application: distillation, gas absorption, desorption system.

Materials: Steel, Carbon Steel, etc

More information you can view here.
