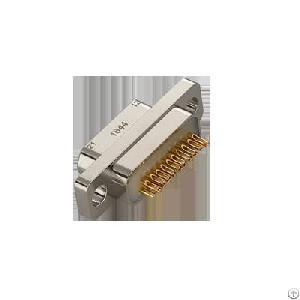

Sunkye Micro D solder cup type connector with the rectangular package, feature gold-plated BeCu Twist
Pin contacts for best performance. Sunkye Micro solder cup connectors matching with MIL-DTL-83513 and accept standard jackscrews and jackpots, making it ideal for applications, which widely used in the military area, aerospace, aviation, electrical, ship-building, defense system, etc.
cup connector Description：
Metal shell recommended for environmental and EMI applications.
Ideal for prototyping or where pigtail type connectors cannot be used.
Plastic connector and solder cup contacts.
Operating temperature: 150°C or 200°C.
9 to 51 contacts.
Metal shell: 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 contacts
Plastic shell: 9, 15, 21, 25, 31, 37, 51 contacts
solder cup connector Introduction
Series * Micro D Connector
Terminal Mounting * Solder Cup type
Contacts *Twist solder cup terminal pin contacts, high-density interconnection, Becu, gold over nickel plating
The thickness of Gold plating * ≥1.27micron
TWIST PIN * Male contact, fitted to plug connector.
Socket * Female contact, fitted to socket connector (also known as a socket).
Insulator* 20% GFPPS (20% glass-filled polyphenylene sulfide)
LCP * Liquid Crystal Polymer.
Potting * Epoxy compound used as an encapsulant
Insert * Moulded insulation housing, separating each connection.
Interfacial Seal * Fitted to socket connector only
Shell *Connector metal body plated nickel or cadmium.
Jackscrew *High or low profile, hexagonal socket or slotted head.
Jackpot* Mates with a jackscrew.
Standard connector * Manufactured to the standard dimensions and specifications.
Special connector * A standard connector modified to meet specific requirements.
Custom made connector * Designed to meet specific customer requirements.
Solder cup connector * Connector with solder type contacts, usually used for prototyping.
