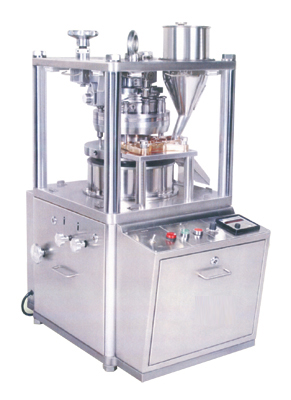

Mini Single Rotary Tablet Press
Posted at: Offers to Sell and Export
Posted on: Thu 25 Jun, 2009 1:02 pm
The Tablet Press, Mini in size and Single Rotary is an ideal choice for R&D work as well as small scale productions. It is also used to avoid wastage when high value ingredients are used for tablet formulations, also known as lab tablet press.
The mini tablet press is designed with GMP considerations. It is sturdy, fitted with single sided turret of special grade Iron Casting.
Features of the Tablet Press :
• Pre compression facility as a standard feature
• A. C. variable drive and fixed pulley. It is driven from central pillar by worm reduction gear box.
• Lower guards of stainless steel & upper guards of transparent acrylic to view tablet compression process of the machine comfortably.
• Electronic Tablet Counting System
• Granules are fed through an open feed frame which ensures trouble free settings and minimum wastage of valuable material.
• Force feeding attachment is optional accessories for difficult, fluffy & fine granule compression.
• Table top, Mobile & easy to clean
• For easy operation outside controls are given for Pre Compression adjustment, tablet thickness adjustment and turret speed adjustment.
Technical Specifications of Tablet Press :
Model TPC - 10 - B TPC - 10 - D TPC - 8 - D
Version GMP GMP GMP
Rotary Single Single Single
Tooling B D D
No. of Station 10 10 8
Output (Tab/hr) 18000 18000 14000
Pressure (Ton) 6 6 6
Max. Tablet
Diameter (mm) 22 16 16
Max. Depth
of Fill (mm) 20.5 17.5 17.5
Power 2 HP, 3 Phase, 1440 RPM, 415 V, 50 Hz
Turret RPM ( Min./ Max.) 10 - 30
Tablet Press Dimension (mm) 400 x 360 x 650
Net Weight (kgs) 400
Packing Dimension (mm) 480 x 670 x 1050
Gross Weight (kgs) 600
We also offer fully automated Mini Rotary Press with 10 station "B" or “D” tooling complying to US FDA 21 CFR Part 11, with LCD Touch screen control Panel.
Note: We reserve right to change specifications without any prior notice.
|
|
|
|
|
