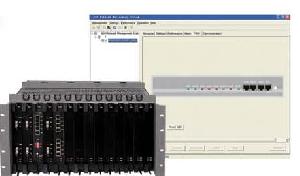

MTSP MSAP STM-1/4 optical transmission system, whose technical performances fully comply with ITU-T and
SDH recommendations. This system is benefit of high integration, flexible construction and strong network adaptability, etc. FBSDH155 provides two 155Mb/s aggregate optical interfaces, FBSDH622 provides two 622Mb/s and four 155Mb/s aggregate optical interfaces, possessing the network elements timing function of ITU-T G.813 recommendation, and VC-3, VC4 and VC-12 full-crossing connection and channel protection function.
Provides 63 x 63 VC12 non-blocking cross-connect, supports tributaries Add/Drop of 1-63E1, with capability of unidirectional and bi-directional multiplexing
Can realize independent service-assignment or mutual protection between two optical interfaces, and can build (connected with RSM-155C) various complex networks of STM-1 multi-ring, and multi-branch, etc.
Provides timing synchronous interface, implements switching of multiple timing sources like 2Mb/s, 2MHz, STM-1, etc., and output of 2Mb/s, 2MH reference clock, supporting SSK function
Provide multiple service interfaces of E1, 10M Ethernet, RS232, etc.
Provides Engineer Order Wire (EOW) interface, with group call and dial functions
6-optical-port, STM-1 MADM or TM multiplexer;
Support up to 231 E1-circuit add/drop;
Provide Ethernet access of channelized E1 and DS3 shared ring
Support cross connection of all VC12 and VC3
