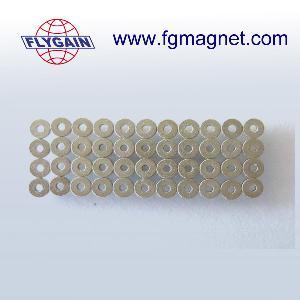

Sintered NdFeB magnet, neodymium magnet are particularly suitable for high volumn production of a wide
variety of shape and size。
These Sintered NdFeB magnets (Neodymium Magnets) are particularly suitable for high volumn production of a wide variety of shape and size ranges. Precise dimensional control is achieved in both processed and usually the component does not require futher machining.
Injection moulded NdFeB does not normally require coating due to high corrosion resistance, however coating is recommended for compression moulded NdFeB.Neodymium Iron Boron (NdFeB) magnets, a sort of Rare Earth magnet material, has the high remanence, high coercive force, high Maximum energy and is easily formed into various sizes, shapes. So they have been widely used in commercially available fields.
It can be manufactured by sintering, compression bonding, injection molding, and extrusion. The sintered form holds the highest energy product of up to 48MGOe, while the bonded form holds a lower energy product of up to 10MGOe. Furthermore, the majority of NdFeB magnets are anisotropic and can only be magnetized in the orientation direction.NdFeB Magents are prone to corrosion in humid environments, It usually need surface treatment according to customer's requirements to protect magnet.
For more detail info, please feel free to visit our website or inquire us at any
of your convenience.
Surface Treatments: Zinc, Copper+Nickel, Epoxy, Gold, Silver, Passivation, and custom coating available upon request.
Magnet Material: NdFeB Magnet, Neodymium Magnet, SmCo Magnet, Ferrite Magnet, Alnico Magnet, Permanent Magnet, Rare-earth Magnet
Shape: Block, Sheet, Bar, Coil, Ball, Stick, Strip, Cup Shape
Coating: Zinc, Nickel, Epoxy, Nickel-copper-nickel, Gold
Magnetizing Direction: Axial Magnetizing, Radial Magnetizing, Quadrupole Magnetizing, Octupole Magnetizing
Material Grade of NdFeB magnet:
Magnet N-( N30, N33, N35, N38, N40, N42, N45, N48, N50, N52), Magnet M-(N33M, N35M, N38M, N40M, N42M, N45M, N48M, N50M), Magnet H-(N33H, N35H, N38H, N40H, N42H, N44H, N46H, N48H), Magnet SH-(N30SH, N33SH, N35SH, N38SH, N40SH, N42SH, N45SH), Magnet UH-( N30UH, N33UH, N35UH, N38UH, N40UH), Magnet EH-(N28EH, N30EH, N33EH, N35EH, N38EH)
Magnet AH-(N28AH, N30AH, N33AH)
Our factory can manufacture NdFeB magnet in various size, according to the customer's specification
