Outdoor Led Advertise Display

Posted at: Offers to Sell and Export | Posted on: Thu 26 Aug, 2010 1:11 am |

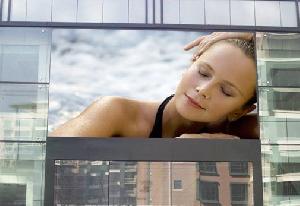

outdoor led advertise display
Products Photos CatalogOutdoor Led Advertise Photos Catalog

P16 Outdoor LED Display

Technical Specifications

LED Module Specifications

1 Pixel Pitch 16mm

2 Pixel

Configuration 2R1G1B

3 Module Resolution 16dots x 8dots

4 Module Size 256mm x 128mm

LED Cabinet Specifications ( Standard Cabinet )

1 Cabinet Size(WxHxD) 1024mm x 768mm x 150mm

2 Cabinet Resolution 64 x 48 pixel dots

3 Module Quanity 24 PCS

4 Cabinet Frame Material black powder coated steel

5 Cabinet Weight 47Kg

Screen Parameters

1 Screen Resolution 3906 dots/㎡

2 Screen Brightness 9500 nits

3 Brightness Adjustment manually or automatically

4 Driving Method constant current static

5 View Angle Horizontal 120° Vertical 60°

6 Optimum Viewing Distance 15m to 300m

7 Refreshing Frequency ≥180Hz

8 Input Voltage AC220V/50Hz or AC110V/60Hz

9 Power Consumption Max.: 1500W/㎡ Average: 500-1000W/㎡

10 Defects Rate ≤0.00001

11 MTBF >5000 hours

12 Lifespan ≥100, 000 hours

13 Protection Grade IP65

14 Temperature-operating ﹣40℃~+60℃

15 Humidity-operating 10%~95%

16 Operating System Windows98/me/2000/NT/XP

Company Contact:

ADDTECH200707 photo
Contact Name: Anna Zeng
Company Name: Shenzhen Add Tech Co., Ltd
Email: Email
Tel: 86-755-29012093
Fax: 86-755-29012098
Street Address: Building B ,
Minjinhai Industrial Park, Shiyan,
Baoan, Shenzhen, China 518108
Website: http://www.szaddtech.com
Member name: ADDTECH200707
Country: China-CN China
Member Since: 26 August 2010
Total Leads: 7 ADDTECH200707 Import Export Business Leads
Business focus: Led Display, Led Full Color Display, Led In Door Display, Led Outdoor Display
