Pap Pipe

Posted at: Offers to Sell and Export | Posted on: Tue 20 May, 2008 4:00 am |

pap pipe
Products Photos CatalogPap Pipe Photos Catalog

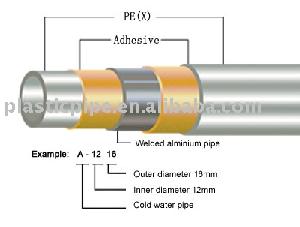

The pex-al-pex pipe(multilayer pipe,PAP pipe) we can supply include:

1) Aluminum layer is longitudinally


welded (by ultra-sonic wave method) in an over-lapping way.

2) Aluminum layer is BUTT-WELDED by argon arc welding method.

3) Aluminum layer is BUTT-WELDED by LASER welding method.

Specifications of the PEX-AL-PEX composite pipe:

I.D. O.D. Radial tensile strength(NM) Long-term static hydraulic strength(Mpa)

Packing Min burst pressure(MPa) Temperature

10 14 2300 2.7 As required 7.0 -40 C--- +60 C

for cold water pipe

-40 C--- +95 C

for hot water pipe

12 16 2300 2.7 As required 6.0

14 18 2300 2.7 As required 6.0

16 20 2500 2.7 As required 5.0

20 25 2500 2.3 As required 4.0

26 32 2500 2.1 As required 4.0

32 40 2800 2.1 As required 4.0

41 50 3200 2.0 As required 3.5

51 63 3200 2.0 As required 3.5

60 75 3200 2.0 As required 3.5

The PEX-AL-PEX composite capitalizes on the corrosion and chemical resistance of plastic and the pressure capacity of metal by laminating the aluminum layer between layers of plastic. The resulting tubing is non-corroding, bendable for form stability, flexible, and resists most acids, salt solutions, alkalis, fats, and oils.

PEX-AL-PEX pipe (PAP pipe) is widely used in residential and commercial plumbing and in pressure service on compressed air and compressed gas systems. PEX, and PEX-AL-PEX pipe are typically joined with metal fittings.



Company Contact:

No member photo
Contact Name: Kathy Shi
Company Name: Sure Union International Ltd.
Email: Email
Tel: 86-20-38858772
Fax: 86-20-38858773
Street Address: Room 1006, Huihao
Building (East Tower), 519 Machang
Road, Pearl River New City,
Guangzhou 510627, China
Website: http://www.plasticpipe.com.cn
Member name: Kathysureunion
Country: China-CN China
Member Since: 19 May 2008
Total Leads: 12 Kathysureunion Import Export Business Leads
Business focus: Pipe Fittings, Brass Fittings, Pipes, PAP Pipes, Pex Pipes, Ppr Pipe, Valves
