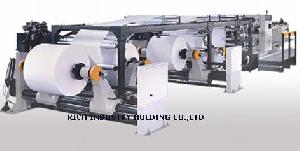

Paper Sheeter

The sheeting paper weight rangs from 45gsm to550gsm can be sheeted by this series machine. And it

can cut 6 paper rolls at one time. Automation deflection rectify and anti-static device. The paper

feeding and delivering units are automation, with hydraulic systems. The touch screen makes

operation more easier and automaticer.


1..Reference weight of cutting-paper 45gsm-550gsm

2.Cutting accuracy ±0.3mm

3.Max.cuttting speed :300sheets/min

4.Max.cutting speed 300m/min

5.Cutting length range: 450-1450mm

6.Max.unwinding diameter :1800mm

7.Max.unwinding width :1400mm / 1700mm

8.Max.Paper stack height :1300mm / 1300mm

9.Gross weigh :12T / 13T

Main Configurations:

1.Dual-wing hydraulic non-shaft paper unwinding stands

2.Automatic paper guid and tension control system

3.paper deviation rectifying system

4.Paper sheets adjustment system .

5.High-precision single rotary knife sheeting system

6.Static eliminating system .

7.Middle slitting and edge trimming.

8.Automatic paper sheets counter system.

9.Paper transfering system

10.Electrical control system.

11.PLC control system

12.Driving motors.

13.Accessories.

14.Automatic vacuum dust cleaning and scrap collecting system

15.Paper delivery system and label inserting system.
