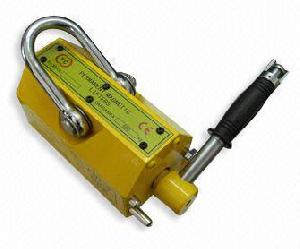

Permanent Lifting Magnet

Posted at: Offers to Sell and Export | Posted on: Fri 28 Nov, 2008 4:58 am | Product Category: Lifting magnet [26]
permanent lifting magnet
Products Photos CatalogPermanent Lifting Photos Catalog

Specialty magnets for the movement of flat or round sheets manually.

Utilizing the incredible power

of rare earth magnets to ensure optimal capacity with small size and lightweight

Range of capacities from 100 to 6,000kg with a 3-3.5:1 safety factor

Maintenance free with zero running costs

Safety locking devise in the ON position

With V-shoe design for handling of round material easily

Large and heavy work pieces can be operated safely by only one person

Available in 7 models


Rated lifting strength: 100kgf

Cylindrical lifting strength: 30kgf

Maximum pull-off strength: 300-350kgf

Operation temperature: <80C

Size: (W) 61 x (L) 92 x (H) 70 x (I) 145mm

Dead weight: 3kg

Carton size: 18 x 15 x 15cm


Rated lifting strength: 300kgf

Cylindrical lifting strength: 100kgf

Maximum pull-off strength: 900-1,050kgf

Size: (W) 92 x (L) 162 x (H) 96 x (I) 180mm

Dead weight: 10kg

Carton size: 26 x 23 x 18cm


Rated lifting strength: 600kgf

Cylindrical lifting strength: 200kgf

Maximum pull-off strength: 1800-2,100kgf

Size: (W) 120 x (L) 216 x (H) 118 x (I) 220mm

Dead weight: 20kg

Carton size: 31 x 31 x 20cm


Rated lifting strength: 1,000kgf

Cylindrical lifting strength: 300kgf

Maximum pull-off strength: 3,000-3,500kgf

Size: (W) 148 x (L) 264 x (H) 138 x (I) 265mm

Dead weight: 37kg

Carton size: 43 x 37 x 30cm


Rated lifting strength: 2,000kgf

Cylindrical lifting strength: 600kgf

Maximum pull-off strength: 6,000-7,000kgf

Size: (W) 172 x (L) 397 x (H) 168 x (I) 380mm

Dead weight: 80kg

Carton size: 51 x 31 x 38cm


Rated lifting strength: 3,000kgf

Cylindrical lifting strength: 1,000kgf

Maximum pull-off strength: 9,000-10,500kgf

Size: (W) 230 x (L) 443 x (H) 215 x (I) 450mm

Dead weight: 160kg

Carton size: 62 x 37 x 46cm


Rated lifting strength: 6,000kgf

Cylindrical lifting strength: 2,000kgf

Maximum pull-off strength: 18,000-21,000kgf

Size: (W) 296 x (L) 720 x (H) 266 x (I) 730mm

Dead weight: 398kg

Carton size: 87 x 38 x 51cm
