Planar Pin Detector Module

Posted at: Offers to Sell and Export | Posted on: Mon 30 Jun, 2008 7:51 am |

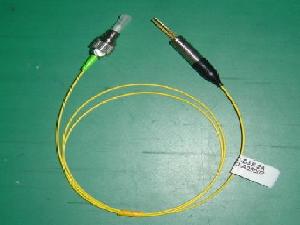

planar pin detector module
Products Photos CatalogPlanar Pin Detector Photos Catalog



Feature

High reseponsivity

Low dark current and low capacitance


Operating Wavelength 1100~1650nm

Coaxial

package

Single Mode Fiber Connecting with FC/APC,SC/APC Connector

Optical and Electronic Characteristics:

Bandwidth(-3dB) Typ 1.9GHz

Capacitance (vcc=5v) <0.5Pf

Dark Current(vcc=5v) <1nA

Responsibility(vcc=5v) >0.85A/W

Saturation Power Typ 3dbm

Return Optical Loss >40dB

Output Voltage Typ 150mV

CSO Typ -70

CTB Typ -80



Company Contact:

No member photo
Contact Name: Vicky
Company Name: Wuhan Koya Communication Technology Co., Ltd
Email: Email
Tel: +86-27-87421711
Fax: +86-27-87591541
Street Address: Himalaya Digital
Park, Changfei Road, East-lake
High-tech Zone, Wuhan, P.R. China
Website: http://www.koya.cn
Member name: Fushuang
Country: China-CN China
Member Since: 26 June 2008
Total Leads: 8 Fushuang Import Export Business Leads
Business focus: 1310nm, 1550nm, 850nm, 650nm Laser Diode Module, Pin Photodiode Module, Fiber Opitcal Patchcord, Fiber Optical Splitter, Coupler
