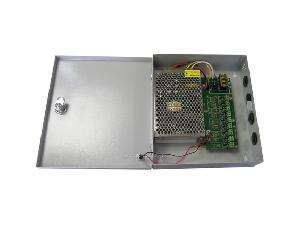

Powerow-ap1209-5s

Posted at: Offers to Sell and Export | Posted on: Sat 03 Apr, 2010 3:33 am |

powerow ap1209 5s
Products Photos CatalogPowerow Ap1209 Photos Catalog



12v dc, 9ch

FTC Fuse


5Amps Power Box

Fuse Rating: 1.0 Amp

110V /220V AC input

Power on/off switch

Surge

protected

Regulated and filtered

8.0"H x 6.4"W x 2.1"D

Model

ow-ap1209-5s

Input Specification

Input Voltage

ac 100vac/220vac

Input Voltage Frequency

50/60Hz

Output Specification

Output Voltage

dc 12v

Total Output Current

5a

Total Outputs

9

Fuse Type

Physical Fuse

Fuse Rating

1. 0a

Weight (Kg)

Net Weight

1. 2

Dimension

Cabinet Dimension

8.0"H x 6.4"W x 2.1"D

Packing Dimension

8.1"H x 6.5"W x 2.2"D

Protection

General Protection

each output has individual physical fuse and LED indicator, when problem occurs, only affect the individual output, other outputs still working

Circuit Short Protection

When short condition occurs, individual physical fuse will open the circuit, when condition removed, PTC fuse will automatically back to close.

High Voltage Protection

when high voltage occurs, the surge protection will be hit through to protect the connected device

Over Current protection

when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal don't need to change the FTC fuse.
