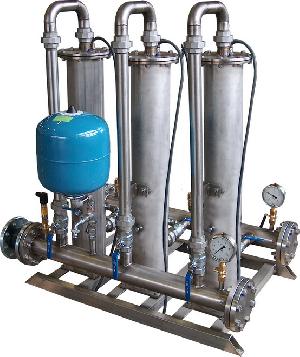

Hydrophore sets built on the basis of deep-well pumps enclosed in hermetic jackets. Due to its parameters, small size and compact structure, those pumps are designed to be installed directly in multifamily residential buildings as well as office and public buildings. Thanks to hermetic housing with wet motor, the pump can also be installed in difficult conditions of humid underground chambers or
spaces that can be periodically flooded.
Control:
- using frequency converter,
Material versions of supporting structure, hermetic jackets and collectors:
- alloy austenitic steel (stainless steel).
The advantages include:
- possibility to use the pump in hard working conditions,
- silent operation comparing to pumping units based on other pumps.
Technical specification:
capacity Q [m3/h] - 0,9 ÷ 60
delivery head ΔH [mH2O] - 10 ÷ 90
pumped liquid temperature tmax [oC] - 25
working pressure [bar] - up to 10
maximum number of pumps in one set - i = 4
