Probecom 3.7m Rx Only Antenna

Posted at: Offers to Sell and Export | Posted on: Tue 28 Jul, 2009 6:44 am |

probecom 3 7m rx antenna
Products Photos CatalogProbecom Antenna Photos Catalog

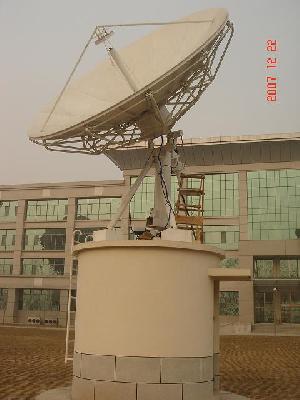

Probecom 3.7m RX only antenna

Features:

Meets or Exceeds CCIR 580 and INTELSAT Requirements


High G/T,

Excellent Pattern Characteristics

3.7m C/Ku band earth station antenna specification

Electrical specification:

Operating Frequency, GHz

C-Band:Rx(3.625-4.2) Tx(5.85-6.425)

Ku-Band:Rx(10.95-12.75) Tx(14.0-14.5)

Polarization: Linear/ Circular

Radiation Pattern:First Sidelobe less than -14, Meet ITU-RS.580-5 and other requirements

Mechanical specification:

Azimuth 60 (Continuous)

Elevation 0-90(Continuous)

Polarization 180(Continuous)

Finishes Reflector Surface Pedestal & Back Structure Aluminum panels with high-diffusing white paintThermal Spraying Zinc

Environmental specification:

Operational Wind 72km/h Gusting to 97km/h

Survival Wind 216km/h

Temperature - 40C - + 60C

Relative Humidity 100%

Solar Radiation 1135Kcal/ h/ m2

Seismic (Survival) 0.3g (H), 0.15g (V)



Company Contact:

probecom photo
Contact Name: Ms. Jasmine
Company Name: Shaanxi Probecom Microwave Technology Co, Ltd
Email: Email
Tel: 0086 29 83115011
Fax: 0086 29 83115033
Street Address: 20th Floor, Jinqiao
International Plaza, 50# Keji Road,
Hitech Development Zone, Xi An,
710065 China
Website: http://www.probecom.cn
Member name: probecom
Country: China-CN China
Member Since: 08 June 2009
Total Leads: 64 probecom Import Export Business Leads
Business focus: Antenna, Earth Station Antenna, Satellite Communication Antenna, Flyaway Antenna, Vsat Antenna, Tvro Antenna, C Ku Band Antenna, Rx Tx Antenna
