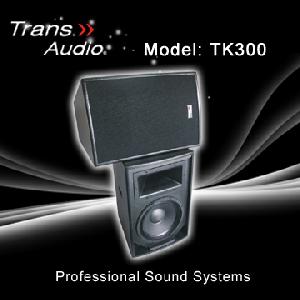

The TRANS-AUDIO TK300 loudspeaker enclosures provide a versatile system that is designed for high quality
distributed sound reinforcement or high performance monitoring or fixed installation.
The loudspeaker’s high-frequency section comprises a 1-inch diaphragm compression driver coupled to a symmetrical (90 degrees horizontal by 40 degrees vertical) constant directivity horn. A high-power 12-inch magnet cone drivers , mounted in an optimally vented enclosure, reproduces low frequencies.
Frequency range (-6dB) 60 Hz to 20k Hz
Sensitivity ( f>80Hz) 98dB
SPL (AES) 123dB SPL
Peak SPL 126dB SPL
Nominal directivity ( -6dB) 90° horizontal, 40° vertical
Nominal impedance 8 Ohm
Transducers 12" (250mm) bass driver
1" (25.4mm) compression driver
Rated Power 300W AES, 600W peak
Recommended amps 100 to 400W into 8 Ohms
Cabinet 15mm plywood with internal reinforcements
Crossover Air core inductors, MKP capacitors, wirewound resistors
Protection grill Acoustically transparent perforated steel,1.5mm thick
Connectors 4 x Neutrik SPEAKON NL4MP
Handles 2 integrated handles on side
Mounting on stand 1 x 35mm built in stand fitting
5 standard points
Dimensions (H x W x D) 610 x 412 x 475 mm
Weight Net unit weight 27.5kg
Gross weight, packed 30.5kg
1. Sensitivity is the average SPL measured over the component s rated bandwidth
2. Power rating displays the long term AES power handling capacity using pink noise with a 6 dB crest factor over the component.s rated bandwidth
3. Directivity is averaged over the 1000Hz-12 kHz range.
4. The SPEAKON cables are wired, hot pin 1+, cold pin 1-.
