Q3hb220m Step Motor Controller

Posted at: Offers to Sell and Export | Posted on: Sat 20 Dec, 2008 1:56 am |

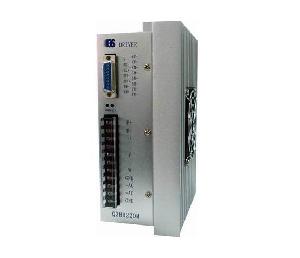

q3hb220m step motor controller
Products Photos CatalogQ3hb220m Step Motor Photos Catalog



Q3HB220M

Feature

High performance, low price


16 channels constant angle and constant torque, the

highest subdivision is 60000s/r

Highest response frequency: 200Kpps

The motor phase current is reduced to setting value 100ms after receiving the last pulse edge

Bipolar constant current chopping circuit

Opto-isolated input/output

Driven current is adjustable in 16 channels from 0.6A/phase to 7.0A/phase

Single power supply, voltage arrange from AC110V to220V

Phase remembering function (The driver remembers motorís phase when thereís no input

pulse is received for 5s and it recovers the motorís phase when the power on or signal

MF is inactive)



Company Contact:

Wantmotor photo
Contact Name: Celery
Company Name: Changzhou Electric Appliance Co., Ltd.
Email: Email
Tel: 0086-519-85138377
Fax: 0086-519-85136737
Street Address: Room1803, Building
A, Jiaxin Garden, Changzhou City,
Jiangsu Province, China
Website: http://www.wantmotor.com
Member name: Wantmotor
Country: China-CN China
Member Since: 19 July 2008
Total Leads: 25 Wantmotor Import Export Business Leads
Business focus: Motor, Driver, Stepping Motor, Dc Motor, Pm Motor
