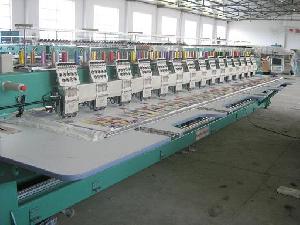

Rp High Speed Embroidery Machine

Posted at: Offers to Sell and Export | Posted on: Tue 21 Oct, 2008 10:13 am |
rp embroidery machine
Products Photos CatalogEmbroidery Machine Photos Catalog

Accumulated from 20 years of manufacturing experience in embroidery machinery field, RP high speed machinery

factory provides now best performance high speed machine to the world.

Computer: World No. 1 Flat Embroidery Technology

Machinery:Adopts High precision spare parts that stands wearing and long life time.

l Maximum speed: 1200 rpm; Production speed 1000RPM.

l Latest automatic oiling system: User may set automatic oiling stitches interval: from 1000-250,000 stitches interval. And automatic oiling time span: from 0.5-10 seconds. User may also set manual oiling system.

l Advanced X. Y driven system, achieved 1200RPM stable high speed sewing and silent high speed frame moving by adopting X, Y stepping motor , accuracy is guaranteed also with world most advanced Interpolation technology, the most advanced driven curve guaranteed the high speed production , furthermore, it is cost-effective, to an extend that other system , limited by system , could not realize yet .

l Advanced computer control system: Worlds first Pentium 586 equivalent Computer control system gives maximum speed and accuracy for high speed control as well as max attachment to each head.

l Independent Presser Foot: Double CAM driven presser foot and needle bar. Less noise and more accuracy.

l Motorized Trimmer and Solenoid trimmer as a free option.

l Motorized Jumper.

l New type tension base gives more stability towards thread feeding.

l Enhanced machine body with heavy structure to resist vibration dramatically in high speed working.

l Noise reduction mechanisms in many places of the machine reduce machine noise substantially, which create favorable working environment for workers

l Special Frame Linear guide drive, ensure the high precision, and making the driving system stronger.

World No. 1 Computer for Multiple Sequins Functions

1. Stable Sequins embroidery speed up to 1000rpm.

2. Sequins Parameters real time display: Color, size, shape of the sequin design are displayed in manner of WYSIWYG (What you see is what you get).

3. Unlimited Combination of all sequin size and colors: You may select random combination of all sizes and colors directly from your design, no need to set on computer and with no limit of 8 or 10 modes of sequins combination. You may embroider unlimited size combination in your masterpiece.

4. Automatic recognition of multi sequins design enable to you to embroider directly without setting again.

5. Sequin head independent mending: When thread breaks on some heads, only the said sequin heads raised up for mending, all other sequin heads remain down position .Greatly improved production efficiency.

6. Sequin devices combination up to 9 types left and right: L1.L1+R1.L2.L2+R1.L2+R2.L3.L3+R1.L3+R2.L3+R3.

7. High speed dynamic switch between sequin sizes: Switch between dual or triple sequins sizes cost you less than 1 second with sequin head in down position! Perfect sequin cutting.

8. Support triple sequins overlap, and cutting.

9. Powerful Editing Function for sequins: Edit each sequin parameter on screen easily.

Company Contact:

Rp2007 photo
Contact Name: Shirley
Company Name: Shenzhen Yuhan Electro-mechanic Co., Ltd.
Email: Email
Tel: 0086-0755-86051787
Fax: 0086-0755-86051795
Street Address: 433 Dongbin Road,
Nanshan District, Shenzhen, 518054, China
Website: http://www.rpemb.com
Member name: Rp2007
Country: China-CN China
Member Since: 02 September 2008
Total Leads: 9 Rp2007 Import Export Business Leads
Business focus: Embroidery Machine, Textile Machine, Quilting Machine
