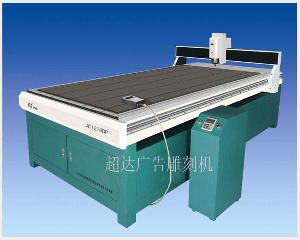

Advertising Engraving Machine
1. Whole body is welded with
cast steel structure, high rigidity, no easy distortion, and excellent durability.
2. With high-precision automatic eliminating gaps ball screw, and cooperated with the imported shaft joint, make transmission more precise.
3. Embedded PC engraving control system, do not need to add other computer, reduce customerís investment.
4. High power microstep driver, make carving work more precisely and stably.
5. Professional carving handle makes the operation much more convenient.
6. High frequency water-cooling spindle motor, and the design of replaceable spindle, make carving, routing, milling and cutting more easily.
7. With communication mouth, software driver, network interface, carving data can be transmitted more flexibly and more quickly.
8. Development-oriented software interface, can be easily connected with CAXA2000, WenTai, Type3, etc. various 3D sculpture software data.
9. Widely used in various industries, such as advertising, building model, crafts & gifts, carpentry, mould processing, etc.
1. X, Y, Z axis working area JC1218: 1200*1850*100mm
2. Table Size: JC1218: 1460*2200mm
3. Max. operating speed 20m/min
4. Max. engraving speed 14m/min
5. Resolution 0.01mm
6. Reposition accuracy 0.05mm
7. Max. feed-in height 120mm
8. Command language G code or HPGL
9. Software running environment Windows98/2000/XP
10 Interface USB
11 Control system PC system
12 Work voltage AC220V/50Hz
13 Spindle power 1.5/ 2.2/ 3kw(option)
14 Spindle rotating speed 0-24000rpm/min
15 Work Mode Stepper
16 Net weight 1000kg
(★notice★： linyi chaoda data control science & technology development co., ltd. can design and manufacture all kinds of cnc engraving machine, laser engraving machine, acrylic suction machine, etc. other equipments according to the specific requirements of customers.)
