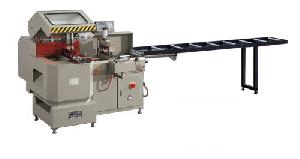

Sell Auto-feeding Single Head Saw Kt-328a

Posted at: Offers to Sell and Export | Posted on: Fri 05 Feb, 2010 6:16 am |

auto feeding head kt 328a
Products Photos CatalogAuto Feeding Head 328a Photos Catalog



Primarily used for aluminum alloy curtain wall material, window material cutting profile, also used for



plastic angle cutting profile, distribution special mould, specially used for angle yard profile automatically. Use carbide alloy saw blade, external diameter can reach to 18 inches, linear velocity is high, processing precision is high. When machine is working, the machine head can cut automatically, also it can cut with manual. The head of saw blade can with digital-display equipment and automation controlling system (with the operating controlling touch screen), therefore it is more suitable for amount cutting of the materials of aluminum door and window and curtain wall.

main technique parameter

1.Cutting length10-830mm

2.Cutting width * height200*120mm

230*100mm

3.Main motor power2.2KW

4.Main motor rotation speed2840r/min

5.Saw blade dimensionD450*d30*120T

6.Saw blade swing angle90°~45°

7.Saw blade feeding speed0~3m/min

8.Saw blade retracting speed2~3m/min

9.Automatically feeding material length8~1785mm

10.Operation air pressure0.6~0.8Mpa

11.Operation voltage380V

12.Overall dimension (L*W*H)2250*1300*1360mm

13.Weight800KG
