Dear Madam/Sir:
We are specialized in manufacturing and export of CCTV security products in China. Our products are Qualified Mini DVR, DVR, CCTV Camera:IP Cameras, High Speed Dome Cameras,Day/Night IR IP camera,PTZ Dome Cameras , Dummy Camera ,Video Distributor, Twisted-Pair Video Transceiver,Video Balun ,Wireless Alarm, Wireless Doorbell, siren,solder,mould,surge protective device ( lightning arrester ),etc. For more, please visit our website: www.telehof.com
The majority of our products are CE and FCC-certified and compliant with RoHS Directives, allowing easy possible distribution within Europe.
If any of our products interest to you,please feel free to contact us.

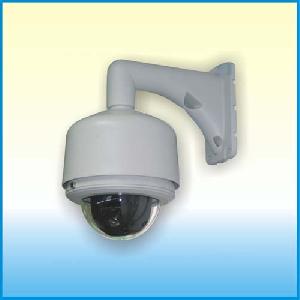

Following is our High Speed Dome Camera(SDC-100S) description:
Main Features:
◎ 6 inches, compact structure, simple installation
◎ Weatherproof, comply with IP66 standard
◎ 256 preset positions, adjustable speed
◎ 6 cruising tracks, each has 16 presets, programmable time and speed
◎ Up to 16 privacy zones, area adjustable
◎ 3 patterns with up to 3 minutes range
◎ RS-485 data communication
◎ Without opening the housing, the ID address directly set on the menu
◎ Built in multi-interface video OSD, compatible with different integrated cameras
◎ System self-protection against power loss
◎ Built-in surge protection device
Specifications:
SYSTEM
Pan speed
0.5°~150°s controlling speed
Panning range
360° continuously
Tilt speed
0.5°~100°/s manual
Tilt range
90° (180° auto flip)
Preset speed
250°/sec (Pan), 100°/sec(Tilt)
Protocol
PELCO-P & PELCO-D auto recognition
Baud rate
1200bps / 2400bps / 4800bps selectable
ID address
1~255 (directly set on the menu)
Decoder
Built-in
Data communication
RS-485
Preset
256 (max.)
Relative humidity
0~95% non-condensing
Working temperature
Indoor: 0°C~50°C; Outdoor: -40°C~60°C
Power supply
AC 110V~220V
Power consumption
36VA standard
MODEL
SDC 100S8N
SDC 100S8Y
Image pick-up device
1/4 type EXview HAD CCD (SONY)
Resolution
480 TV lines
Auto ICR mode
No
Yes
Signal output
NTSC / PAL
Video output
VBS: 1.0Vp-p (sync negative); Y/C output
Effective pixels
NTSC: 768(H)*494(V) 380K; PAL: 752(H)*582(V) 440K
Lens
18x optical zoom, f=4.1mm(wide)~73.8mm(tele), F1.4~F3.0
Digital zoom
12x (216x with optical zoom)
Viewing angle (H)
48° (wide end) ~ 2.8° (tele end)
Sync system
Internal / External (V-Lock)
Min. Illumination
0.7Lux (typical) (F1.4, 50IRE)
S/N ratio
More than 50dB
Electronic shutter
1/1~1/10,000 sec, 22 steps
White balance
Auto, ATW, Indoor, Outdoor, One-push, Manual
Gain
Auto / Manual (-3~288dB, 2dB steps)
Camera control interface
VISCA (TTL signal level),
Baud rate: 9.6Kb/s, 19.2Kb/s, 38.4Kb/s,
Stop bit: 1/2 selectable
Operating temp. / humidity
0°C ~50°C / 20~80%
_________________
Contact Name: Dabby Liu/ Roggar Law
Company Name:
Telehof Electronics Instruments & Equipment (Shenzhen) Co., Ltd.
Email: telehof@telehof.com
Tel: (86 755) 26404189
Fax: (86 755) 26649048
Street Address: Section 1, 6/F,
Building 207, Nanyou 2nd Industrial
Estate, Nanshan District, Shenzhen,
China
|
Posted By Telehof
Country:  China
Member Since: 24 April 2008
Total Leads: 18
Business focus: Cctv, Dvr,Cctv Camera, Ip Camera, Alarm, Doorbell, Security Products, Dome Camera, Ir Camera, Surveillance, Surge Protection Device, Lightning Arrester

|
|
|
|
|
|
|
|
|
