Sell Cnc Miller

Posted at: Offers to Sell and Export | Posted on: Fri 02 Jul, 2010 3:24 am |
cnc miller

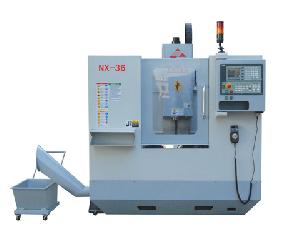

Products Photos CatalogCnc Miller Photos Catalog

Sell cnc miller

X axis travel/mm: 500

Y axis travel/mm: 300

Z axis travel/mm:


Table size/(L*W): 600*300

Max load on the table/kg: 300

T-slot size/mm: 105*18*3

Spindle speed/rpm: 60~8000

Spindle motor/kw: 3.7

X, Y, Z rapid traverse/M/min: 15/15/15

Max cutting feed rate(M/min):10

Positioning accuracy/mm: 0.005

Machine height/mm: 1800

Space requirement(L*W): 2200*2000

Net machine weight/kg: 2000

Power requirement/KVA: 10

Drive motor/kw: 1.0/1.0/1.0

Control system: HNC18I

Machine features:

1) The spindle box has adopted high-quality transmission of 8YU synchronous gear belt or gear pair, increasing cutting forces by 2-8 times, suitable for processing steel material parts with strong torque and nonferrous metal with high speed, and has the advantage of small machine with strong torque.

2) This series models have the characteristic of modularization, combination and optional functions .the control systems can be HNC 18i, Pou Yuen LNC410, or Syntec EZ4M; also the clients have great availability of machine accessories and tools.
