Bundle / Ribbon Multi-fiber Connector

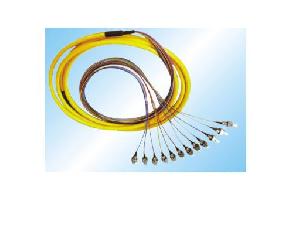

Optical fiber ribbon fan-out pigtail can separate and protect
fibers in a multi-core optical fiber ribbon (such as 12 cores) through a special fan-out splitter, so as to connect each fiber through a connector to make the fibers connection on ODF.
Compliant with the standard of IEC and YD-T826/1996
High Return Loss and Low Insertion Loss.
Good reliability and stability
Polishing type: PC, UPC, and APC
Various interface: FC, SC, ST…
Core of cable: 4, 6, 8, 12…
Local Area Network
Insertion Loss: (SM)PC≤ 0.3 dB, UPC≤ 0.2 dB, APC≤ 0.2 dB (MM) PC≤0.3B
Return Loss: PC ≥45dB, UPC≥50dB, APC≥60dB
Durability:( (1000 times) ≤ 0.2dB
Temperature range: -40℃~+80℃
