Sell Graphite Electrode

Posted at: Offers to Sell and Export | Posted on: Fri 19 Oct, 2007 6:57 am | Product Category: Electrodes [298]

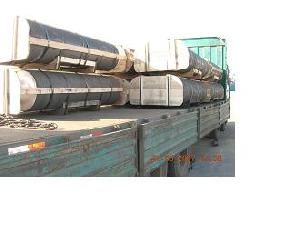

graphite electrode
Products Photos CatalogGraphite Electrode Photos Catalog



Specifications and properties:

1.NP /RP graphite electrode:

Dia 75-130mm, Resistivity max 8.5, Bending


strength min 9.8 mpa, Elastic modulus max 9.3gpa, CTE max 2.9 x 10-6/c, , Bulk density min 1.58g/cm3, ASH max 0.5%.

Dia 150-200mm, Resistivity max9.0, Bending strength min 9.8 mpa, Elastic modulus max 9.3gpa, CTE max 2.9 x 10-6/c, , Bulk density min 1.52g/cm3, ASH max 0.5%.

Dia250-350mm, Resistivity max 9.0, Bending strength min 7.8 mpa, Elastic modulus max 9.3gpa, CTE max 2.9 x 10-6/c, , Bulk density min 1.52g/cm3, ASH max 0.5%.

Dia 400-500mm, Resistivity max9.0, Bending strength min 6.4 mpa, Elastic modulus max 9.3gpa, CTE max 2.9 x 10-6/c, , Bulk density min 1.52g/cm3, ASH max 0.5%.

nipple: Resistivity 8.5 max, Bending strength12.7 mpa min, Elastic modulus13.7gpa max, CTE max 1.6-2.2 x 10-6/c, , Bulk density min1.63-1.68g/cm3, ASH max 0.5%.

2.HP graphite electrode:

Dia300-500mm, Resistivity 6.0-7.0, Bending strength9.8-12.0 mpa, Elastic modulus 10.0-12.0gpa, CTE max 2.2 x 10-6/c, , Bulk density min 1.62-1.70g/cm3, ASH max 0.3%.

nipple: Resistivity 3.5-5.5, Bending strength14.0-20.0 mpa, Elastic modulus 14.0-18.0gpa, CTE max 1.6-2.2 x 10-6/c, , Bulk density min 1.70-1.78g/cm3, ASH max 0.3%.

3.UHP graphite electrode:

Dia300-500mm, Resistivity 6.3 max, Bending strength 10.5 mpa min, Elastic modulus 14.0 gpa max, CTE max1.5 x 10-6/c, , Bulk density min 1.66g/cm3, ASH max 0.3%.

Dia550-700mm, Resistivity 6.3 max, Bending strength 11.0 mpa min, Elastic modulus 14.0 gpa max, CTE max1.4 x 10-6/c, , Bulk density min 1.66g/cm3, ASH max 0.3%.

nipple: Resistivity 3.5-5.0, Bending strength20.0-25.0 mpa, Elastic modulus 16.0-22.0gpa, CTE max 1.2 x 10-6/c, , Bulk density min 1.72-1.82g/cm3, ASH max 0.3%

Packing

(a) The stores shall be packed in sufficiently durable wooden box to withstand overseas shipment and tropical conditions and also to ensure against exposure damage during transit Off loaded at the port of destination.

(b) Graphite Electrode and Nipples will be carefully packed separately for shipment.

(c) For added protection the electrodes should be enclosed by Battens on all side and additionally secured by metal hands to protect the threads, the face of the electrode should be covered with cardboard disk, Electrode should be covered with strong PVC sheets to withstand transportation during rainy season.



Company Contact:

No member photo
Contact Name: Bruce Li
Company Name: Dalian Hongrui Carbon Co., Ltd.
Email: Email
Tel: 008641182652551 / 008641182652552
Fax: 008641182652550
Street Address: 8j No 16 Liyuan Mansion,
Zhongshan District, Dalian, China
Website: http://www.graphiteelectrode.cn
Member name: jitan
Country: China-CN China
Member Since: 18 October 2007
Total Leads: 1 jitan Import Export Business Leads
Business focus: Graphite Electrode, Carbon Products
