Sell Insulating Glass Vertical Roller-press Production Line

Posted at: Offers to Sell and Export | Posted on: Tue 16 Dec, 2008 8:09 am | Product Category: Insulating glass [59]

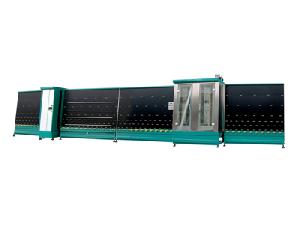

insulating glass vertical roller press line
Products Photos CatalogInsulating Glass Photos Catalog

Product Description:

This machine is specially designed for producing alu-spacer type insulating glass.

1).Accomplish the double glazing's cleaning, alu-frame locating, through roller pressing and smooth shifting out.

2).The machine is controlled by PLC program, frequency stepless speed control, main electrical parts are imported.

3).Roller pressing machine be equipped with time-delay device to ensure effect.

4).The machine can be equipped with roll-pressing machines with one-, two-, and three-roller according to user's request, so it can meet pressing request of different glass.

Technical Parameter

Input Voltage 380V 50Hz

Input Power 11Kw

Working air pressure 0.5-0.8Mpa

Air Consumption 400L/min

Min size of glass 420X100mm

Max size of glass 2000X1600mm

Max Insulating glass thickness 30mm

Travel Speed 1.2-5.6m/min

Overall dimension 11700X2000X2350mm

Net weight 1800Kg

Company Contact:

Kevin6658 photo
Contact Name: Kevin Lee
Company Name: China Eurisen Industry Co., Ltd
Email: Email
Tel: +86-531-82708799
Fax: +86-531-82708799
Street Address: NO.30 Jiefang
Road, Qingdao, China
Website: http://www.eurisen.com
Member name: Kevin6658
Country: China-CN China
Member Since: 16 December 2008
Total Leads: 11 Kevin6658 Import Export Business Leads
Business focus: Window Machine, Insulating Glass Machine, Pvc Welder, Double Mitre Saw, Milling Machine, Corner Cleaning Machine, Corner Crimping Machine
