Sell Pharmaceutical Machinery Sub-speed Rotary Tablet Zpygs55
Posted at: Offers to Sell and Export | Posted on: Thursday 9 May 2013 2:05 am | Poster last visit: Thursday 26 September 2019 |
Product Category: Main
» Industrial Manufacturing and Processing Machinery and Accessories
» Industrial process machinery and equipment and supplies
» Manufacturing tables and stands
» Rotary tables
» Sell Pharmaceutical Machinery Sub-speed Rotary Tablet Zpygs55
Product Description:
Main Application

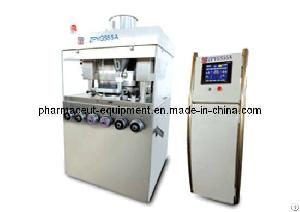

ZPYGS55A Update and Sub-Speed Rotary Tablet Press is a new generation sub-speed tablet
press, which is an upgrade of sub high speed tablet press. This equipment is designed and manufactured with rich experiences in tablet press manufacturing of more than 40 years and modern design ideas, which is applicable for large-scale and intensive tablet production. This machine could press round and abnormal shape tablets of various specifications, and its output configuration and functions have been improved to a higher level than the traditional tablet press. The capacity and pressure of this series sub high speed rotary tablet press are very high, its pre-pressure is consecutively adjustable, its structure is compact, it's simple to operate and maintain and it runs reliably. It is applicable for extensive materials. Its running and operating cost is low, with favorable performance price ratio advantage.
Characteristics
1. Comply with GMP requirements.
2. The high production efficiency could satisfy the demands of large batch production.
3. It's equipped with forced feeding device, various forms of impellors could satisfy demands of different materials to ensure the feeding precision.
4. High pressure, the pre-pressure is consecutively adjustable, which extends the pressing duration. The machine runs smoothly and could press the materials difficult to mould.
5. The tablet pressing chamber is dead angle free for 360°, special installation means are adopted for the tablet discharging mechanism, the under guide track and under roller, it's convenient to operate, dismantle and clean.
6. The special oil-resistant and dustproof system has avoided punching blockage and has increased the damp structure.
7. An independent view window with high definition is designed for the machine.
8. Controlled by PLC and man-machine interface, and it's simple to operate and intuitionistic.
Model
zpygs55a
zp zpygs51a
Ipt zpygs41a
ipt
Max. capacity (10000 tablets/hour)
26
22
16
Max. tablet press diameter ( mm )
13
19
25
Max. filling depth ( mm )
18
18
18
Max. tablet thickness ( mm )
8
9
9
Max. pressure ( kN )
120
Max. pre-pressure ( kN )
20
Main motor power ( kW )
7.5
Dimensions ( Length mm× Width mm )
1220×1120
Height ( mm )
Including hopper
1850
Touch screen cantilever
1980
Weight ( kg )
2000
Company Contact:
Contact Name: Helen Feng
Company Name: Liaoning Bright Shine Pharmaceutical Machinery & Equipment Co., Ltd
Email:
Tel: 0086-0419 2886046
Fax: 0086-0419 2165298
Street Address: No.111-18, Xinhua Road,
Liaoyang, China 111000
Website: https://www.jx-machinery.com
Member name: lyscl
Country:
China
Member Since: 28 July 2009
Total Leads: 114 lyscl Import Export Business Leads
Business focus: Pharmaceutical Machinery, Packing Machinery, Tablet Press, Mixer, Granulator, Dryer, Capsule Filling Machinery
Chat:
Verify: Safe Import Export Tips
