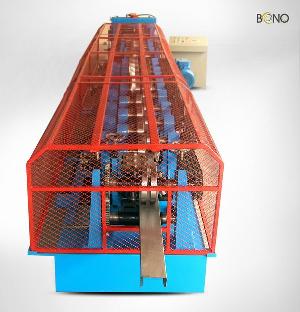

Sell Roll Forming Machine To Make C Purlin, Tile Or Wall Panel, Keen
Posted at: TradersCity --> Offers to Sell and Export
Posted on: Mon 16 Jun, 2008 7:07 am
Detailed Product Description
Features:
1) Can produce many sizes of C shaped purlins
2) The whole line mainly consists of uncoiler and its base, coil sheet flattening
equipment, C forming system, punching equipment, post-cutting equipment,
hydraulic station, and controlling system
3) Fixing dimensions: 23,000 x 2,400 x 1,400mm
4) Total weight: about 13,000kg
5) Controlling system: PLC
6) Main motor power: 15kW
7) Hydraulic station power: 15kW
8) Quantity of stands: about 16 groups
9) Working speed: 8,000 - 10,000mm/min
10) Hydraulic pressure: 18 - 20MPa
11) Material of roller die: GCr15 bearing steel with quenched treatment
12) Material of cutting die: Cr12 mould steel with quenched treatment
13) Product range: all the types from 100 to 250
14) C purlin mainly use hot roll steel strip or hot dip galvanized steel strip at
thickness 1.5 - 3.2mm; it is roll formed by C shape roll forming machine
15) Working flow: decoiling the sheet-sheet guiding -coil strip leveling-roll
forming-punching for horizontal hole-punching for vertical hole-measure
length-cutting the panel-panels to the supporter
16) The products of C shape purlin forming machine have excellent
anti-bending property and are easy to install
17) They are widely used as the supporter of roof and wall in large-scale and
mid-scale construction, such as factories, warehouses
|
|
|
|
|
|
|
|
|
|
