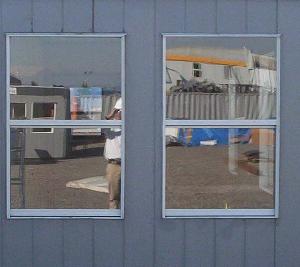

Single Hung Window

Posted at: Offers to Sell and Export | Posted on: Fri 09 Apr, 2010 12:24 pm |

hung window
Products Photos CatalogHung Window Photos Catalog



Specifications

General: The series 6063T-5 aluminum widnow shall comply and bear the quality certification


label in accordance with the ANSI/AAMA Certification Program.

Material: Aluminum window frames and sash members shall be of 6063-T5 extruded aluminum alloy within commercial tolerances. Integral fins to have suitable break-off and nailing grooves.

Finish: Windows to be finished in natural aluminum extruded mill finish. Bronze or white acrylic electrostatically applied enamel finish available if specified.

Construction: All joints of frame and sash members shall be neatly fitted, securely connected and permanently watertight. Frames shall have step point construction for maximum rigidity. Both frames and sash members shall use an extruded screw boss that is an integral part of the extruded section. The operating sash shall interlock at both meeting rail and sill. The operating sash shall be easily removable from inside and not removable when in locked position. Mullions to be furnished as required.

Weatherstripping: Weatherstripping shall be silicon treated, fungus, mildew, and moth resistant high performance poly bond fin seal around the complete perimeter of the operating sash with a permanent poly fin in the middle of the poly pile to minimize air infiltration. Vertical stiles are weatherstripped. The poly pile weather-stripping shall use a poly bond backing to insure against shrinkage. Bottom sash rail is also furnished with a vinyl seal for double protection.

Hardware: Aluminum window shall be factory equipped with an automatic lock made of non-corrosive material.

Screens: Screens shall be available on all windows and shall be installed or removed from inside. Screen frames shall be aluminum sections securely joined at the corners. Screen cloth shall be 18x16 mesh fiberglass.

Installation: All aluminum windows shall be set in accordance with the manufacturer’s recommendations without springing, forcing, or distorting. Head and sill shall be aligned parallel and square with jambs. A non-hardening sealant compatible with aluminum shall be provided by the window erector, and applied in sufficient quantity to provide a watertight seal between window and surrounding construction. Manufacturer assumes no liability for damage by the trades or final cleaning of aluminum.

Glazing: All aluminum windows shall be glazed with clear ˝" dual insulated glass, set in a butyal tape and secured with vinyl glazing bead (inside glaze). Also available bronze tinted glass muntin bars between the glass at an extra cost. The insulated glass shall be manufactured under the trade name "thermo cell" and shall meet or exceed ASTM E 773-83 and ASTM E 774-84A Class A.

Warmly welcome to contact us for a quote & needed details!

best regards from Daniel in China( foshan city of Guangdong Province)



Company Contact:

danielce photo
Contact Name: Daniel Ju
Company Name: Foshan Tianchuang Aluminium Industry Co., Ltd.
Email: Email
Tel: 86-757-85581299
Fax: 86-757-85505936
Street Address: South Area, Shannan
Industrial Park, Nanhai District, Foshan City,
Guangdong Prov., China 528234
Website: http://www.fc-fs.com
Member name: danielce
Country: China-CN China
Member Since: 09 April 2010
Total Leads: 8 danielce Import Export Business Leads
Business focus: Aluminium Window, Aluminium Door, Aluminium Alloy Window, Aluminium Alloy Door
