Name: GSM Data Acquisition System (SCADA)

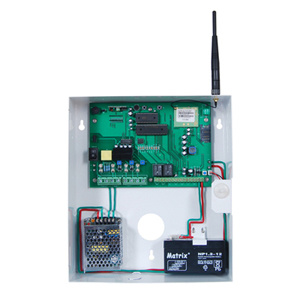

GSM Data Acquisition System
(AD2000)(SCADA) is based on GSM Cellular Network. With the functions of remotely data, environment monitoring (support input DC 4-20MA), fire pretection, anti-burglary, as well as intelligent remotely control, it is widely used in industry, building, petroleum, rail-way, school...etc.
A. Data Monitoring
GSM Data Acquisition System (AD2000) can monitor the AC/DC voltage remotely. The user can know the exat data ( e.g. input voltage is AC 220 V) via SMS, also user can set the voltage alarm point. When the input voltage is higher or lower this point, the system will alarm. It will send SMS, as well as phone call to inform user immediaterly.
1. AC Voltage input monitoring
Range: 0-300V (50/60Hz)
2. DC Voltage input Monitoring
3. DC current input monitoring (support any industrial sensors, such as Pressure sensor, Water level sensor...etc).
4. Temperature Monitoring
Range: -10 - +60
B. Fire Pretection
GSM Data Communicator is also combined with fire pretection function. It with 2 wireless fire zones (24hrs), It can work with any of wireless fire sensors, such as Wireless Smoke sensor, Gas sensor, temperature sensor...etc).
C. Anti-burglary Function.
GSM Data Communicator can work with any of wireless anti-burglary detection sensors ( Wireless PIR Motion Sensor, Wireless Door/Window Magnetic Contact, Active Infrared Beams & Fence...etc), this system with 8 wireless zones.
D. Remotely Control Function.
AD2000 with 2 relay outputs. The user can control these two relay outputs via SMS remotely.
1. Integrated with Tri-band GSM Module (900/1800/1900) (Quad-band for option)
2. Can program 1-4 SMS number to receive Monitoring Data, Fire, Anti-burglar information
3. Can program 1-2 PHONE number to receive alarm information.
4. 4 Channel Data acquisition: AC Voltage, DC voltage, Temperature, Standard Current ( 0-20mA).
5. Two Relay output.
6. Two Switch input
7. One Wireless SOS(emergency) Zone, One Wireless Fire Zone, Six Wireless Zones
8. Power off alert, temper alert.
9. Support Wireless Keypad & SMS programming.
10. Support voice monitoring, two way communication (option).
11. With Self-check function
Input: AC220/110V-260V (50/60Hz), Output: DC 15V/2A
Back up battery:
Lead-acid battery. DC12V-13.8V 1200MAH.
Switch input: (wired zone)
Dry contact input. NO/NC
NO (Normal Open) 7A/240VAC, 10A/120VAC 10A/28VDC
Voice Recording Time:
= 8 s
29cm X 25.5cm X 8.1cm
