Stepper Motor Controller Sd-2h086mb

Posted at: Offers to Sell and Export | Posted on: Sat 20 Dec, 2008 1:53 am | Product Category: Step motor DC [134]

stepper motor controller sd 2h086mb
Products Photos CatalogStepper Motor Photos Catalog

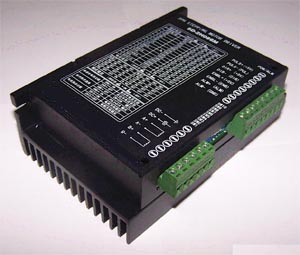

SD-2H086MB

Introduction


The SD-2H086MB is an economical microstepping driver based on patented

technology of Wantai Motor .It is suitable for driving 2-phase 4-phase hybrid stepping motors .By using the advanced bipolar constant-current shopping technique ,it can output more speed and torque from the same motor,compared with traditional drivers ,such as L/R drivers .Its 3-state current control technology allows coil currents to be well controlled and with relatively small current ripple,therefore less motor heating is achieved.

Features

Low cost and good high-speed torque

14 selectable resolutions

Supply voltage up to +80VDC

Suitable for-2-phase and 4-phase motors

Output current up to 5.86A

Dip switch current setting 8different values

Optically isolated input signals

Pulse frequency up to 200KHz

Automatic idle-current reduction

Small size (107*97*48),Weight:1KG



Company Contact:

Wantmotor photo
Contact Name: Celery
Company Name: Changzhou Electric Appliance Co., Ltd.
Email: Email
Tel: 0086-519-85138377
Fax: 0086-519-85136737
Street Address: Room1803, Building
A, Jiaxin Garden, Changzhou City,
Jiangsu Province, China
Website: http://www.wantmotor.com
Member name: Wantmotor
Country: China-CN China
Member Since: 19 July 2008
Total Leads: 25 Wantmotor Import Export Business Leads
Business focus: Motor, Driver, Stepping Motor, Dc Motor, Pm Motor
