Stepper Motor Counter

Posted at: Offers to Sell and Export | Posted on: Tue 29 Apr, 2008 3:04 am | Product Category: Step motor DC [134]

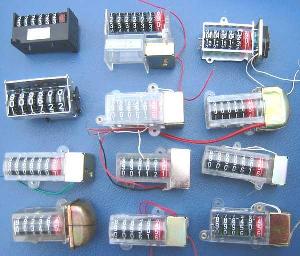

stepper motor counter
Products Photos CatalogStepper Motor Counter Photos Catalog

Key Specifications:

Working voltage:3V to 6V(pulse)Working pulse width:50ms to 600ms

Max working

frequency: 5Hz

DC impedance at 20 degree: 1)400ohm-500ohm 2) 680-780ohm 3) 800-1000Ohm

Digit: 4+1 0000.0 - 9999.9; 5+1 00000.0- 99999.9; 6+0 000000 – 999999; 6+1 000000.0-999999.9

Ratio: 100:1; 200:1; 400:1; 20:1; 40:1; 80:1; 100:1

Initial reading: According customer's instruction, for example 99999.5

Digit dimension: 5x3mm or 5x2.5 mm

Decimal digit color: White numeral in red wheel

Integer digits color: White numeral in black wheel

Custom working temperature: -20C to +70C( special temperature range to be discussed)

Direction of red wheel: Reversible or non-reversible (reverse locking)

Mounting holes: 2 upper holes or 2 bottom holes or 4 holes

Flying wire length: 10-15cm or according customer's requirement

High precision and low aging ratio

produced by ISO9001 company,100% quality guarantee

one million output per month, products used in bulk in more than 50 countries

Many types are available.

Company Contact:

wenzhoutbg photo
Contact Name: Ms. Linda Long
Company Name: Shanghai TBG Electric Co., Ltd.
Email: Email
Tel: +86-577-27870007
Fax: +86-577-27870087
Street Address: 7th floor, Hualian Edifice,
Liushi, Wenzhou, Zhejiang, China
Website: http://www.cntbg.com
Member name: wenzhoutbg
Country: China-CN China
Member Since: 18 September 2007
Total Leads: 54 wenzhoutbg Import Export Business Leads
Business focus: Circuit Breaker, Fuse, Meter, Energy Saving Lamp, Transformer, Starter, Relay, Contactor, Terminals, Switch, Cable Accessories, Stepper Counter
