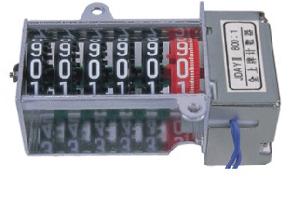

Stepper Motor Counter With Gear Box

Posted at: Offers to Sell and Export | Posted on: Fri 21 Aug, 2009 1:52 am | Product Category: Step motor DC [134]
stepper motor counter gear box
Products Photos CatalogStepper Motor Counter Photos Catalog

1. Pulse ration 800:1

2. Start-up voltage: not more than 2.8V

3. Normal working voltage: 3.5V to


4. Pulse Width : 70ms to 320 ms

5. Coil Resistance Value: 430±5%ohm

6. Motor torque output: up to 30mN.m

7. Working Frequency: 6HZ

8. Working Temperature: -40ºC¯70ºC

9. Letter wheel : 5+1

10. Letter wheel material: PC

11. Wire Length: 90mm, 100mm, and 120mm

12. Bracket: alloy

13. Lifespan: above 10 years

14. The standard for Anti-vibration and anti-impact is GB/T17215

15. "quanshang" Brand


1. Different mounting possibilities: on request

2. Magnetic shield: with or without

3. Alternative operating voltage: on request

4. Alternative coil resistance : on request

our customer:

ABB shanghai Branch

OSWELL counter(trade company in shanghai)

Company Contact:

No member photo
Contact Name: Nick
Company Name: Jiaxing Yongxin Electron Co., Ltd
Email: Email
Tel: 86-150-67378105 or 86-0573-85582611
Fax: 86-573-85582677
Street Address: No 329 Yanshan West
Road, Zhapu Economic Development Zone,
Jiaxing City, Zhejiang Province, China
Website: http://www.quanshang.com.cn
Member name: yxnick
Country: China-CN China
Member Since: 21 August 2009
Total Leads: 3 yxnick Import Export Business Leads
Business focus: Meter Counter, Stepper Motor Counter, Mini Bar, Hotel Fridge, Mini Fridge, Refrigerator
