Supply Cnc Router Ht-1224

Posted at: Offers to Sell and Export | Posted on: Fri 03 Sep, 2010 8:52 am |

cnc router ht 1224

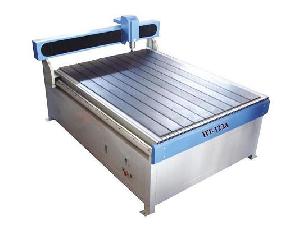

Products Photos CatalogCnc Router 1224 Photos Catalog



Characteristic:

1. domestic well-known brand, with high speed and efficiency.


2. with the memory of

the break point, guarantee that can process the accident or previous day.

3. unique preservation way of the zero point.

4. Welded structure makes our routers more stable and the positioning accuracy is more accurance.

Performance parameter:

number

Description

parameter

1

XYZ working area

1220*2400*100mm

2

Table size

1300*2700mm

3

XYZ travel positioning accuracy

0.05mm

4

XYZ repositioning positioning accury

0.05mm

5

Table surface

Aluminum molding + PVC

6

frame

Cast iron

7

drive system X-Y axis

Ball screw

8

drive system Z axis

Ball screw

9

spindle power

2.2kw

10

Max velocity

8m/min

11

Max working speed

6m/min

12

Spindle speed

0-24000rmp

13

work mode

Stepper

14

Working voltage`

ac220v

15

Command language

G code

16

Interface

usb

17

Operating system

Ncstudio(weihong)

18

Flash memory

128

19

X-Y resolution

﹤0.025mm

20

Software environment

Wentai type3 artcam

21

Running environment

Temperature:0-45℃

22

Packing size

3300*1650*1350mm

23

Net weight

900kg

24

Gross weight

1000kg
