Supply Wood Cnc Router Ht-1325a

Posted at: Offers to Sell and Export | Posted on: Fri 03 Sep, 2010 9:13 am |

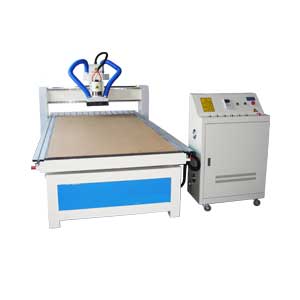

wood cnc router ht 1325a
Products Photos CatalogWood Cnc Router 1325a Photos Catalog



characteristic:

1.Water cooling spindle,high precision,long life time,steady working,easy


to start up.

2.thicken square pipe stucture, well welded, no distortion for whole structure high precision, and long life time.

3.DSP controller system with USB interface, working without connecting with computer during working and easy to control.

4.Software:CAD/CAM designing software such as type3/artcam/castmate/weitai etc.

5.auto oilling system, easy to operate by pressing one key.

6.seperated control system makes operation easily.

7.Adopt high speed stepper motor and drivers, and two motors for Y axis.max speed is 25mm/min.

performance parameter:

number

Description

parameter

1

XYZ working area

1300*2500*200mm

2

Table size

1330*3040mm

3

XYZ travel positioning accuracy

0.05mm

4

XYZ repositioning positioning accury

0.05mm

5

Table surface

aluminum molding

6

frame

tube structure

7

drive system X-Y axis

Rack actuation

8

drive system Z axis

Ball screw

9

Spindle power

3kw

10

Max velocity

25m/min

11

Max working speed

15m/min

12

Spindle speed

0-24000rmp

13

work mode

Stepper

14

Working voltage

ac220v

15

Command language

G code

16

Interface

usb

17

Operating system

DSP(optional Ncstudio)

18

Flash memory

128

19

X-Y resolution

﹤0.025mm

20

Software environment

Ucancam type3 artcam

21

Running environment

Temperature:0-45℃

22

Paking size

3300*1900*1800mm

23

Net weight

1000kg

24

Gross weight

1200kg



Company Contact:

No member photo
Contact Name: Jackie Zhao
Company Name: Huiteng Technology Co., Ltd
Email: Email
Tel: 86-0531-83275138
Fax: 86-0531-83275138
Street Address: No.301, South Qinghe
Road, Jinan, Shandong, China
Website: http://www.ht-cnc.net
Member name: Huiteng
Country: China-CN China
Member Since: 03 September 2010
Total Leads: 12 Huiteng Import Export Business Leads
Business focus: CNC Router, CNC Engraving Machine, Laser Engraving Machine
