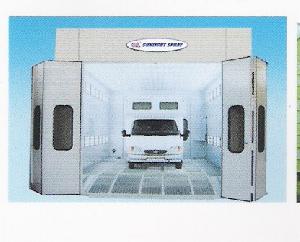

Surface Cleaning And Finishing Spray Painting Booth

we are export of spray painting booth ,provide spraying, accelerated drying or baking in one clean fast operation, we can design the spray booth to make it more flexiable to meet any of your installation and dimension requirement
pls contact us to know details,or visit our website:http://www.spl.cn

The standard dimension of spray booth:

O.D.24’(L)*18’8’’(W)*11’3’’(H)
7330mm(L)*5690mm(W)*3450mm(H)
OR 26’10’’(L)*18’8’’(W)*11’3’’(H)
8200mm(L)*5690mm(W)*3450mm(H)

I.D.23’7’’(L)*14’(W)*8’6’’(H) 7210mm(L)*4270mm(W)*2600mm(H)
OR 26’6’’(L)*14’’(W)*8’6’’(H)
8080mm(L)*4270mm(W)*2600mm(H)


fan power:7.5kw*1+7.5kw*1
air make-up unit:3000m3/h
air flow speed:0.27m/s
burner:1,500,000BTU
highest temperature:80℃
total power:18kw
wall panel material:0.9mm color steel plates insulate rock wool
basement form:full gratings
main door:3030mm(w)*2600mm(h)
enhanced curing system
VFDcontrolled fan system
spray Gun Air control system
hangers
