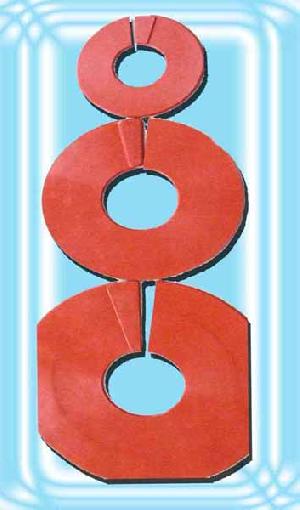

The High Temperature Vulcanizing Fluorine Silicon Rubber Increases Climbs Umbrella Skirt

The high temperature vulcanizing fluorine silicon rubber increases climbs umbrella skirt
A. Purpose
The high temperature vulcanizing fluorine silicon rubber increases climbs umbrella skirt (climbs skirt for short) is used in equipment porcelain of the station with AC35-220kv and above. It can enhance the “flashover” voltage of serious defilement area effectively. It also good corrosionproof and aging resistance. After use this product, increases climbs’ effect is evidently, and the capability of flashover preventation and ice-flash preventation is improved effectively. The climbs skirt is light in weight. It is convenience to construct scene.
B. Structure and use
Climbs skirt is silicon fluorine rubber product. It is the only producer in china. It is detected by national authority institution. Its insulatibity, hydrophobic and mobility etc. are all better than general rubber products. When use in normal temperature, bond the umbrella skirt and porcelain by silicon fluorine bond. Attention to fill by bond at the opening joint, don’t leave clearance, make the umbrella skirt and porcelain to one thing. Clear odd bond after planish. The power can run after the surface is dry.
C. Size

Number

Specification (mm)

Number

Specification (mm)
1

Ø 50×Ø 270

30

Ø 275×Ø 510
2

Ø 95×Ø 240

31

Ø 280×Ø 486
3

Ø 96×Ø 240

32

Ø 280×Ø 490
4

Ø 110×Ø 340

33

Ø 280×Ø 520
5

Ø 125×Ø 310

34

Ø287×Ø 575
6

Ø 140×Ø 375

35

Ø 300×Ø 460
7

Ø 140×Ø 380

36

Ø 305×Ø 560
8

Ø 150×Ø 365

37

Ø 305×Ø 470
9

Ø 150×Ø 367

38

Ø 314×Ø 487
10

Ø 150×Ø 370

39

Ø 320×Ø 500
11

Ø 150×Ø 375

40

Ø 325×Ø 545
12

Ø150×Ø 380

41

Ø 345×Ø 540
13

Ø 150×Ø 385

42

Ø 345×Ø 565
14

Ø 150×Ø390

43

Ø 355×Ø560
15

Ø 150×Ø 490

44

Ø 360×Ø 510
16

Ø 160×Ø490

45

Ø 380×Ø 555
17

Ø 163×Ø 455

46

Ø 425×Ø 650
18

Ø 165×Ø455

47

Ø 427×Ø 675
19

Ø 167×Ø 380

48

Ø 430×Ø 590
20

Ø 170×Ø380

49

Ø 465×Ø 700
21

Ø 170×Ø 410

50

Ø 490×Ø 735
22

Ø173×Ø 467

51

Ø 510×Ø 745
23

Ø 173×Ø530

52

Ø 520×Ø 800
24

Ø 175×Ø 465

53

Ø 530×Ø 715
25

Ø 210×Ø425

54

Ø 545×Ø 766
26

Ø215×Ø 455

55


27

Ø270×Ø 475

56


28

Ø 275×Ø 485

57


29

Ø 275×Ø465

58


D. Bond
a) clear
Use clean cloth wipe the surface of porcelain, wipe off defilement.
b) Preassemble
Chose the umbrella skirt which inner diameter match up with the porcelain and the outer diameter accord with the request, carry on to pack.
c) Rubberize
Well-distributed rubberize on the surface of the scraper (about 0.5mm). Apply the bond of the same thickness at the opposite of umbrella skirt.
d) Suit
Case the rubberized umbrella skirt and well placed. Even press the surface in order to remove the air in the joint surface, remove odd bond.
E. Package and deposit
a) Pack with the box.
b) Decide the package number according to the different size of umbrella piece. Attach the introduction and inspection certificate.
c) Pack the bond by itself.
d) Deposit it at dry place, avoid contacting with oil and other harmful material.
e) Don’t pile up over three floors. Avoid breaking the package through transport.
f) Pay attention to avoid breaking the umbrella skirt by sharp weapon when open the box.
F. Order notice
a) Notice the type, size, number and deliver date in the order.
b) Contact unit: Hebei Silicon Valley Chemical Co., Ltd, High Voltage Electric Factory

Direct-current suspended type porcelain insulator increases climbs skirt
A. Purpose
Direct-current suspended type porcelain insulator increases climbs skirt is a new product of our company, special used in increase climb of direct current or alternating current suspended type insulator. The capacity usage and bond procedure are similar as above-mentioned increase climb umbrella skirt, but different with the structure.
B. Size


Model

FSX1—160

FSXZ1—210

FSXZ1—300

FSXZ2—160
Suit specification KN

Direct – current 160

Direct – current 210

Direct – current 300

Direct – current 160
Manufacture

Tangshan NGK

Tangshan NGK

Tangshan NGK

Dalian Porcelain Co.,Ltd
Increases Climb Skirt Climb distance mm

303

303

349

303
Increasing climb distance mm

185

185

193

180
Splice Area mm

884

884

1418

955
Increases Climb Skirt Weight Kg

2.2

2.2

3.1

2.2
Use glue consult quantity g

80

80

120

80
C. Increases climb skirt model explanation
FS——Product material structural style code, expressed the high temperature curing fluorine silicon material increases crawls the skirt.
X——Product characteristic code: the expression is suitable the direct-current suspended type porcelain
Insulator to increase climb skirt.
1——The expression is suitable the Tangshan NGK manufacture the porcelain insulator
2——The expression was suitable the porcelain insulation which made in Dalian.
3——Porcelain insulator intensity rank is 160、210、300 .
Other factory production porcelain, the glass spacer block may refer to the above target to select and purchase increase climbs skirt.
D. Bond
a) Chose the suit increase climb skirt in the table according to the insulator’s size.
b) Work should be in the environment of sunshine, no rain and snow, the temperature is not bellow five degree centigrade.
c) The bond way is similar as above-mentioned.
E. Package and deposit
a) Pack with the box.
b) In the box, it has five pieces increase skirts, five pieces lap pieces, bond, inspection certificate and introduction.
c) Deposit, transport and other attentions are similar as above-mentioned.
