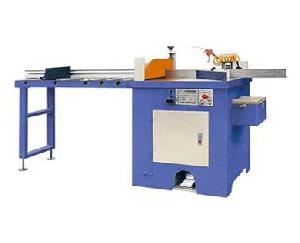

Tk Pvc Rotary Core Cutter

Posted at: Offers to Sell and Export | Posted on: Wed 23 Jul, 2008 8:37 am |

tk pvc rotary core cutter
Products Photos CatalogPvc Rotary Core Cutter Photos Catalog



Features/Specifications:

01) Hidden rotary knives to ensure the safety of operator

02) Automatic foot


switch, pressing and sawing

03) Sawing and cutting angle: 90 and 45 degrees

04) Max sawing and cutting width: 300mm

05) Max sawing and cutting thickness: 125mm

06) Rotating speed of the main shaft: 3500rpm

07) Sawing and cutting speed: 10-15cycles/min

08) Area of the working table: 645-668mm

09) Height from the floor to the working table: 850mm

10) Power of the motor: 3kW

11) Necessary air pressure: 5-6kg/cm

12) Length of the frame blocking the material: 1m

13) Weight 303kg Net



Company Contact:

No member photo
Contact Name: Andy Lou
Company Name: Jiaxing Patsons Machinery & Electronics Co., Ltd
Email: Email
Tel: 86 573 82571919
Fax: 86 573 82571313
Street Address: Patsons M & E
Building 101, Weiyi Road, Dongsha
Industrial Zone, Nanhu District, Jiaxing City,
Zhejiang Province, China
Website: http://www.patsonschina.com
Member name: Ppdandylou
Country: China-CN China
Member Since: 17 July 2008
Total Leads: 15 Ppdandylou Import Export Business Leads
Business focus: Packaging Machine, Printing Machine, Aluminium Foil Container, Aluminium Foil Container Machine, Aluminium Roll Online Machine, Paper Converting Machine
