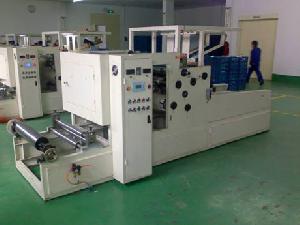

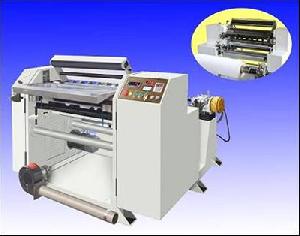

Tk-rw Roll Slitter Rewinder

MODEL: TK RW 900(mm)

BRIEF TECHNICAL DATA:


Maximum Width : 898 mm
Maximum Mother Reel Dia : 990 mm
Slitting Width (Standard) : Adjustable Width Maximum 898mm
Maximum Unwind Diameter : 160 mm
Rewind Core Diameter : 0.3" / 0.5" / 1" / 1.5" - Standard
Cutting Speed : 12 - 120 M / per minute
Machine Overall Dimension : 2 M (L) x 1.9 M (W) x 1.1 M (H)
Nett Weight of Machinery : 1/2 M/Ton (Above 500kg.)
Power Voltage : 380 Voltage / 50 Hz
Total Power : 4.5 kw (kilowatt)
PRODUCTION OF PAPER PRODUCTS :
Thermal Paper Rolls
POS - Electronic Cash Register Rolls
ATM - Bank Rolls
Bank Tele printer Rolls
Receipt Ticketing Machine Rolls
Medical Report Rolls
Electronic Credit Card Slip Rolls & All type of small paper rolls


ESTIMATE PRODUCTION ROLL / PER MINUTE
MODEL: TK RW NEW SERIES
SMALL ROLL SLITTER & REWINDER


MODEL 57mm 70mm 76mm 80mm
700 24 roll/min 20 roll/min 18 roll/min 16 roll/min
700TR 22 roll/min 18 roll/min 16 roll/min 14 roll/min
900 30 roll/min 24 roll/min 22 roll/min 22 roll/min
950 32 roll/min 26 roll/min 24 roll/min 22 roll/min
970 34 roll/min 26 roll/min 24 roll/min 24 roll/min

Average roll diameter = 50mm (for easy calculation)


Basing on Lowest Production x 8 working hours


Model Number of Rolls Per Day
700 11,520Rolls 9,600 Rolls 8,640 Rolls 7,600 Rolls
700TR 10,560 Rolls 8,640 Rolls 7,680 Rolls 6,720 Rolls
900 14,400 Rolls 11,520 Rolls 10,560 Rolls 10,560 Rolls
950 15,360 Rolls 12,480 Rolls 11,520 Rolls 10,560 Rolls
970 16,320 Rolls 12,480 Rolls 11,520 Rolls 11,520 Rolls

OTHER MODELS: TK RW 700(mm), TK RW 700 TR(mm), TK RW 950(mm) & TK RW 970(mm)
