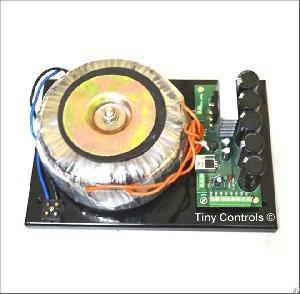

Tl-500-1 59v 12a Supply Kit
Posted at: Offers to Sell and Export | Posted on: Thursday 18 December 2014 1:11 pm | Poster last visit: Friday 2 January 2015 |
Product Category: Main
» Electrical Systems and Lighting and Components and Accessories and Supplies
» Electrical equipment and components and supplies
» Power conditioning equipment
» Power supply transformers
» Tl-500-1 59v 12a Supply Kit
Product Description:
Linear (Unregulated) Power Supplies for CNC machines
A fully assembled linear power supply for CNC based
applications with +24V unregulated and +12V regulated isolated outputs along with unregulated power supply for motors. For easy star connections to multiple motor drives in system, multiple screw terminals are given.
Specifications
Transformer Type : Toroidal-CRGO
Model : TL-500-1
Output - 1 (unregulated) : 59V (12A)
Capacitor at output - 1 : 11, 000 uF / 100V DC
Terminals for output - 1 : 4
Output - 2 (unregulated) : 24 V (800mA)
Output - 3 (regulated) : 12V (800mA)
Max combined current from (output2 + output3) : 1A
Terminals for outputs - 2, 3 : 1 each with common GND
Total transformer Rating : 500 VA continuous
Weight (approx) : 8 Kg
Company Contact:
Contact Name: Anil Jangra
Company Name: Tiny Controls Pvt Ptd
Email:
Tel: 9911193210
Fax:
Street Address: C-55, Nishat Park,
Kakrola
New Delhi, Delhi 110078
India
Website: http://www.tinycontrols.com
Member name: tinycontrols
Country: India
Member Since: 17 December 2014
Total Leads: 37 tinycontrols Import Export Business Leads
Business focus: Stepper Motor, Motion Controllers, Power Supplie, Pulse Generators, Controller Panels, High Spee Spindles, Stepper Drivers, Couplings
