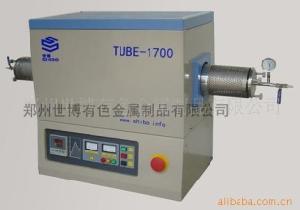

Tube Furnace

Posted at: Offers to Sell and Export | Posted on: Thu 12 Aug, 2010 8:53 am | Targeted Countries: China Product Category: Furnaces [414]
tube furnace
Products Photos CatalogTube Furnace Photos Catalog


Heated by 1800C Molybdenum Disilicide (MoSi2) heating elements, Alumina tube size (Outer

Diameter): 60mm, 80mm, 100mm, 51 steps programmable temperature control, Furnace can be vacuumed or filled with protection gas

GSL1700 Tube furnace is advanced type of GSL-1600. It’s heater by 1800C MoSi2 heating elements. This furnace is widely used in Material and Chemical laboratory used for heating all kinds new samples at vacuum or gas protection environment. Temperature is controlled by high accuracy controller which can reach to +/-1C, and it can set 51 steps temperature program. The highest working temperature of this furnace is 1750C.

Furnace Tube High Purity Alumina Tube

Sizes of Furnace Tube ID: 50mm / OD: 60 mm  x 1000 mm LONG

Heating Elements  6pcs 1800C MoSi2

MAX. Temperature 1700C

Working Temperature 1600C

Temperature Control PID Auto Control, 51Steps Program

The Fastest Heating Rate 10C / min

Heating Zone Length  457 mm ( 18")

Constant Temperature Zone 150 mm  (6")

Temperature Accuracy  +/-1C

Voltage single, 220V AC, 50/60 Hz

Power Max. 5KW

Size 550 L x450 W x670 H  mm

Net Weight 150 kg ( 330 lbs )

Package Size  47" x 45"x 45"(1200L x 1150W x 1150Hmm)
