V Wire Water Well Screen

Posted at: Offers to Sell and Export | Posted on: Thu 08 Oct, 2009 12:43 am |
v wire water screen
Products Photos CatalogWire Water Screen Photos Catalog

Johnson Screen/Water Well Screen / Wedge Wire Screen/Welded Screen/Screen Pipe

I. Characteristics:

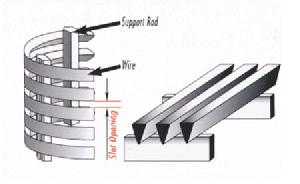

well screen is made up of rods and warps. The rod can be round wire, triangular wire or wedge wire. The warp is triangular wire (or wedge wire). Water well screens have a strong structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

II. Our wedge wire screen has many advantages.

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.

Wedge wire which avoids clogging and ensures

uninterrupted flow.

Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

III. The Specification of Johnson Screen

Materials: 304, 302, 304L, 316, 316L stainless steel wire, or galvanized steel wire.

Styles of connection: by welding or by threaded male/female coupling.


(inch) o.d

(mm) slot

(inch) length

(m) collapse


(psi) tensile


(TON) WRAP(thick*deep)

(mm) rods


4 117 0.040 3-6 395 6 2.2*3.0 3.8mm/22

4 114.3 0.040 3-6 395 6 2.3*3.0 3.8mm/22

6 168.3 0.040 3-6 252 8 2.3*3.5 3.8mm/32

8 219.1 0.010 3-6 399 10.5 3.0*5.0 3.8mm/48

8 219.1 0.020 3-6 370 10.5 3.0*5.0 3.8mm/48

8 219.1 0.040 3-6 323 10.5 3.0*5.0 3.8mm/48

10 273.1 0.010 3-6 206 11 3.0*5.0 3.8mm/50

10 273.1 0.020 3-6 191 11 3.0*5.0 3.8mm/50

10 273.1 0.040 3-6 167 11 3.0*5.0 3.8mm/50
